Description
Brand - ZEN
Item Number - NUTR1542 ZEN

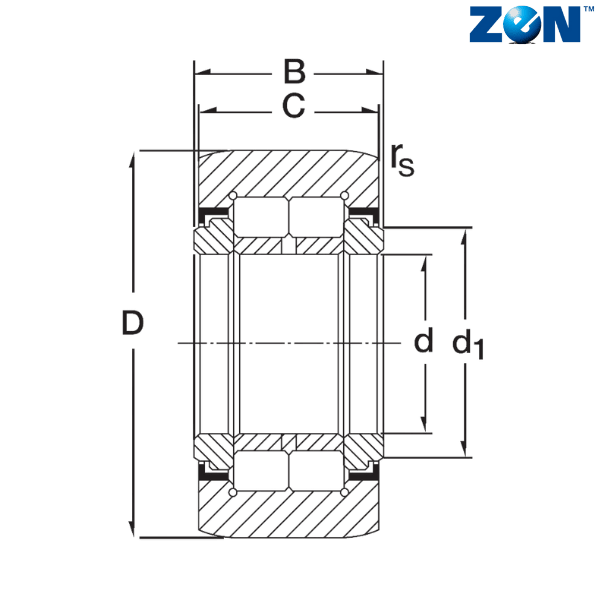

Category - Yoke Type Track Rollers (NUTR Series)
Inner Diameter (d) mm - 15
Outer Diameter (D) mm - 42
Width (B) mm - 19
C (mm) - 18
rs (mm) - 0.6
d1 (mm) - 20
Static Load Rating (N) - 23000
Dynamic Load Rating (N) - 27000
Limiting Speed - 7000
Weight (kg) - 0.158
Radial Play - 0.002-0.045
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
** Images are for representation purposes only
