Description
Brand - IKO
Item Number - NURT 50 IKO
Also Known As - NURT50

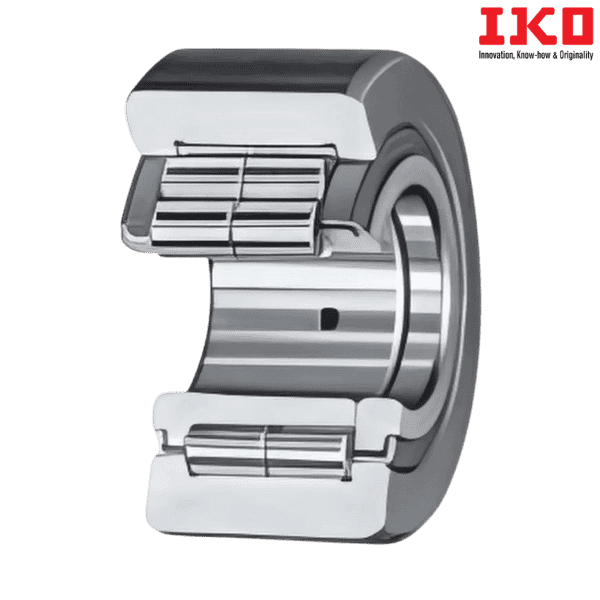

Category - Cylindrical Roller Followers Full Complement Type/With Inner Ring
Type - With Cylindrical Outer Ring

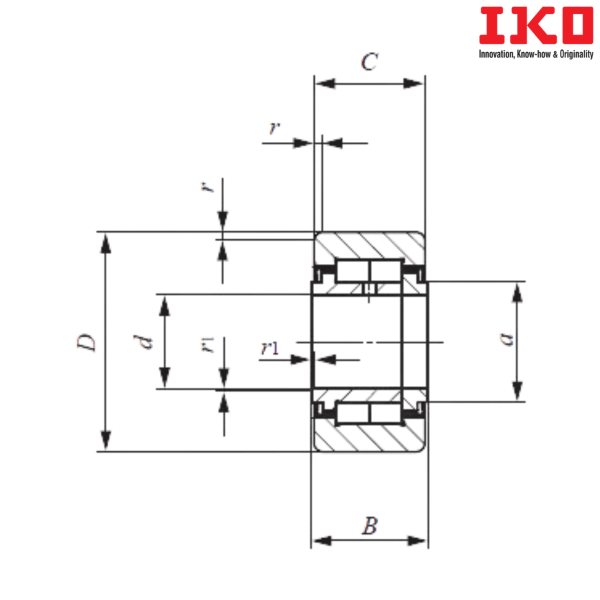

Shaft Diameter (mm) - 50
Bore Diameter (d) mm - 50
Outer Diameter (D) mm - 90
Width (B) mm - 32
Boundary dimension (C) mm - 30
Boundary dimension (a) mm - 58
Minimum Allowable Value of Chamfer Dimension (rs) mm - 1
Minimum Allowable Value of Chamfer Dimension (r1s) mm - 0.6
Basic Dynamic Load Rating (C) N - 96300
Basic Static Load Rating (C0) N - 148000
Maximum allowable static load (N) - 82100
Bearing with Cylindrical Outer Ring - NURT 50 R
Weight (kg) - 0.95
