Description
Brand - IKO
Item Number - NURT 45-1 R IKO
Also Known As - NURT45-1R
Category - Cylindrical Roller Followers Full Complement Type/With Inner Ring
Type - With Crowned Outer Ring
Shaft Diameter (mm) - 45
Bore Diameter (d) mm - 45
Outer Diameter (D) mm - 100
Width (B) mm - 32
Boundary dimension (C) mm - 30
Boundary dimension (a) mm - 53
Minimum Allowable Value of Chamfer Dimension (rs) mm - 1
Minimum Allowable Value of Chamfer Dimension (r1s) mm - 0.6
Basic Dynamic Load Rating (C) N - 91500
Basic Static Load Rating (C0) N - 135000
Maximum allowable static load (N) - 135000
Bearing with Crowned Outer Ring - NURT 45-1
Weight (kg) - 1.4
Suffix Description :
R - With Crowned Outer Ring

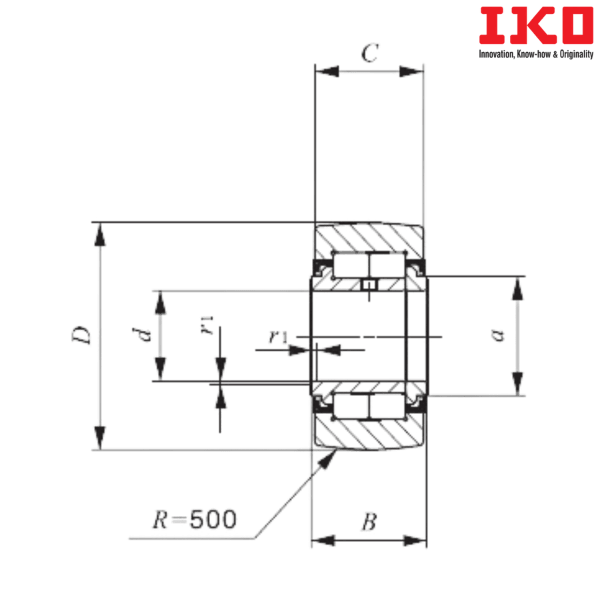

** Images are for representation purposes only
