Description
Brand - IKO
Item Number - NURT 40 IKO
Also Known As - NURT40
Category - Cylindrical Roller Followers Full Complement Type/With Inner Ring
Type - With Cylindrical Outer Ring
Shaft Diameter (mm) - 40

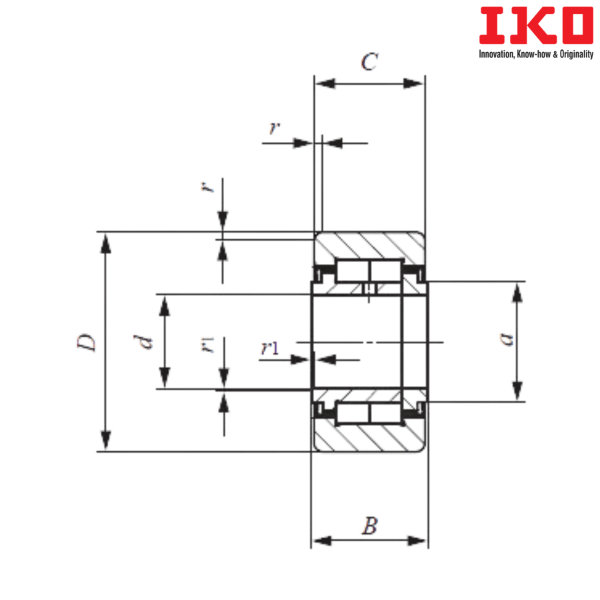

Bore Diameter (d) mm - 40
Outer Diameter (D) mm - 80
Width (B) mm - 32
Boundary dimension (C) mm - 30
Boundary dimension (a) mm - 49
Minimum Allowable Value of Chamfer Dimension (rs) mm - 1
Minimum Allowable Value of Chamfer Dimension (r1s) mm - 0.6
Basic Dynamic Load Rating (C) N - 86500
Basic Static Load Rating (C0) N - 122000
Maximum allowable static load (N) - 75300
Bearing with Cylindrical Outer Ring - NURT 40 R
Weight (kg) - 0.817
** Images are for representation purposes only
