Description
Brand - IKO
Item Number - NURT 40-1 R IKO
Also Known As - NURT40-1R
Category - Cylindrical Roller Followers Full Complement Type/With Inner Ring
Type - With Crowned Outer Ring
Shaft Diameter (mm) - 40
Bore Diameter (d) mm - 40
Outer Diameter (D) mm - 90
Width (B) mm - 32
Boundary dimension (C) mm - 30
Boundary dimension (a) mm - 49
Minimum Allowable Value of Chamfer Dimension (rs) mm - 1
Minimum Allowable Value of Chamfer Dimension (r1s) mm - 0.6
Basic Dynamic Load Rating (C) N - 86500
Basic Static Load Rating (C0) N - 122000
Maximum allowable static load (N) - 122000
Bearing with Crowned Outer Ring - NURT 40-1
Weight (kg) - 1.13
Suffix Description :
R - With Crowned Outer Ring

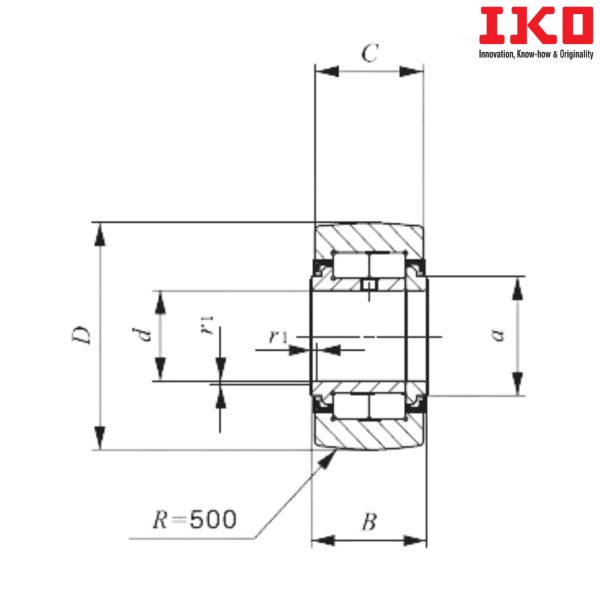

** Images are for representation purposes only
