Description
Brand - IKO
Item Number - NURT 35-1 R IKO
Also Known As - NURT35-1R
Category - Cylindrical Roller Followers Full Complement Type/With Inner Ring
Type - With Crowned Outer Ring
Shaft Diameter (mm) - 35
Bore Diameter (d) mm - 35
Outer Diameter (D) mm - 80
Width (B) mm - 29
Boundary dimension (C) mm - 28
Boundary dimension (a) mm - 44
Minimum Allowable Value of Chamfer Dimension (rs) mm - 1
Minimum Allowable Value of Chamfer Dimension (r1s) mm - 0.6
Basic Dynamic Load Rating (C) N - 63900
Basic Static Load Rating (C0) N - 88800
Maximum allowable static load (N) - 88800
Bearing with Crowned Outer Ring - NURT 35-1
Weight (kg) - 0.84
Suffix Description :
R - With Crowned Outer Ring

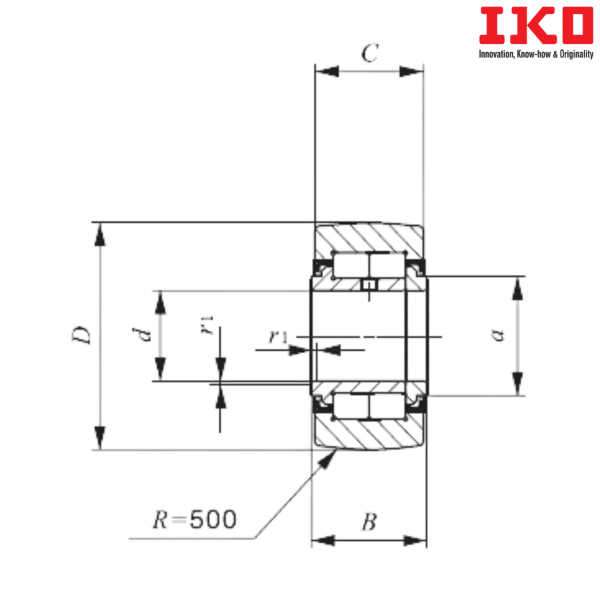

** Images are for representation purposes only
