Description
Brand - IKO
Item Number - NURT 30 IKO
Also Known As - NURT30
Category - Cylindrical Roller Followers Full Complement Type/With Inner Ring
Type - With Cylindrical Outer Ring
Shaft Diameter (mm) - 30
Bore Diameter (d) mm - 30
Outer Diameter (D) mm - 62
Width (B) mm - 29
Boundary dimension (C) mm - 28
Boundary dimension (a) mm - 38
Minimum Allowable Value of Chamfer Dimension (rs) mm - 1
Minimum Allowable Value of Chamfer Dimension (r1s) mm - 0.3
Basic Dynamic Load Rating (C) N - 58200
Basic Static Load Rating (C0) N - 75300
Maximum allowable static load (N) - 35200
Bearing with Cylindrical Outer Ring - NURT 30 R
Weight (kg) - 0.466

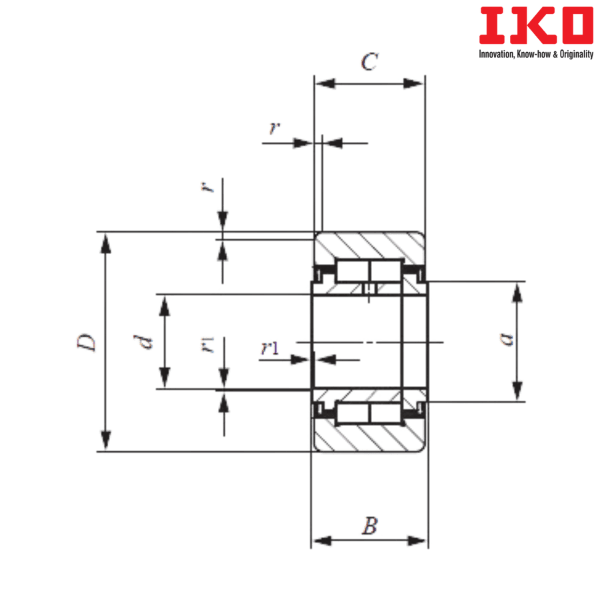

** Images are for representation purposes only
