Description
Brand - IKO
Item Number - NURT 30-1 R IKO
Also Known As - NURT30-1R
Category - Cylindrical Roller Followers Full Complement Type/With Inner Ring
Type - With Crowned Outer Ring

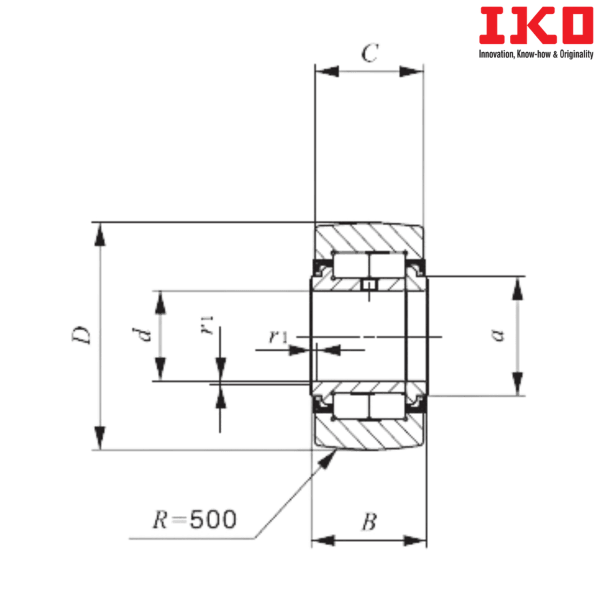

Shaft Diameter (mm) - 30
Bore Diameter (d) mm - 30
Outer Diameter (D) mm - 72
Width (B) mm - 29
Boundary dimension (C) mm - 28
Boundary dimension (a) mm - 38
Minimum Allowable Value of Chamfer Dimension (rs) mm - 1
Minimum Allowable Value of Chamfer Dimension (r1s) mm - 0.3
Basic Dynamic Load Rating (C) N - 58200
Basic Static Load Rating (C0) N - 75300
Maximum allowable static load (N) - 75300
Bearing with Crowned Outer Ring - NURT 30-1
Weight (kg) - 0.697
Suffix Description :
R - With Crowned Outer Ring
** Images are for representation purposes only
