Description
Brand - IKO
Item Number - NURT 25 R IKO
Also Known As - NURT25R
Category - Cylindrical Roller Followers Full Complement Type/With Inner Ring
Type - With Crowned Outer Ring

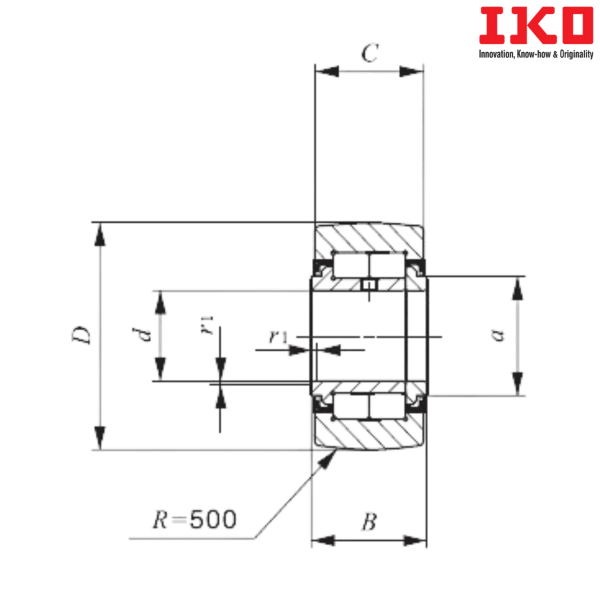

Shaft Diameter (mm) - 25
Bore Diameter (d) mm - 25
Outer Diameter (D) mm - 52
Width (B) mm - 25
Boundary dimension (C) mm - 24
Boundary dimension (a) mm - 31
Minimum Allowable Value of Chamfer Dimension (rs) mm - 1
Minimum Allowable Value of Chamfer Dimension (r1s) mm - 0.3
Basic Dynamic Load Rating (C) N - 43100
Basic Static Load Rating (C0) N - 58100
Maximum allowable static load (N) - 30000
Bearing with Crowned Outer Ring - NURT 25
Weight (kg) - 0.281
Suffix Description :
R - With Crowned Outer Ring

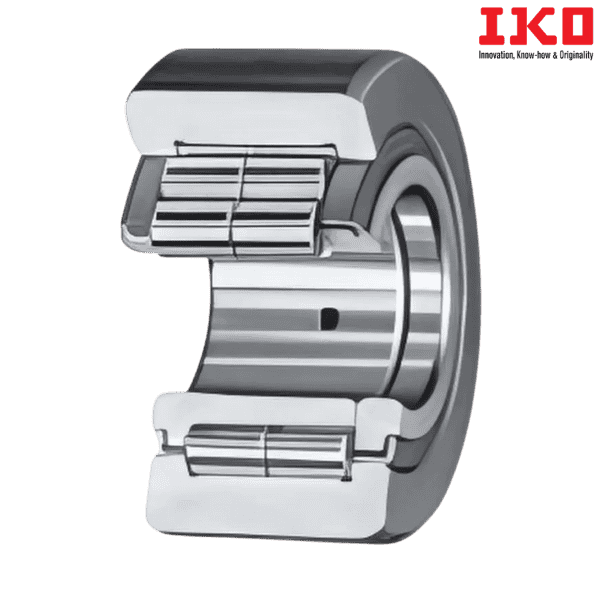

** Images are for representation purposes only
