Description
Brand - IKO
Item Number - NURT 17 R IKO
Also Known As - NURT17R

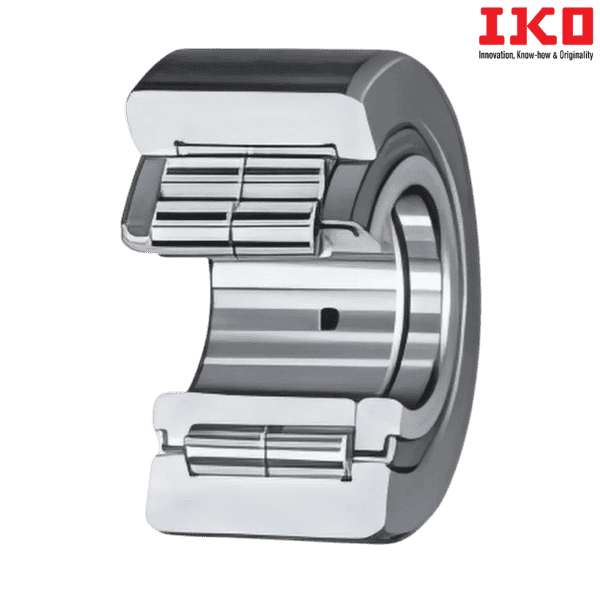

Category - Cylindrical Roller Followers Full Complement Type/With Inner Ring
Type - With Crowned Outer Ring
Shaft Diameter (mm) - 17
Bore Diameter (d) mm - 17
Outer Diameter (D) mm - 40
Width (B) mm - 21
Boundary dimension (C) mm - 20
Boundary dimension (a) mm - 22
Minimum Allowable Value of Chamfer Dimension (rs) mm - 1
Minimum Allowable Value of Chamfer Dimension (r1s) mm - 0.3
Basic Dynamic Load Rating (C) N - 25200
Basic Static Load Rating (C0) N - 30900
Maximum allowable static load (N) - 20300
Bearing with Crowned Outer Ring - NURT 17
Weight (kg) - 0.147
Suffix Description :
R - With Crowned Outer Ring
** Images are for representation purposes only
