Description
Brand - IKO
Item Number - NURT 17-1 IKO
Also Known As - NURT17-1
Category - Cylindrical Roller Followers Full Complement Type/With Inner Ring
Type - With Cylindrical Outer Ring
Shaft Diameter (mm) - 17

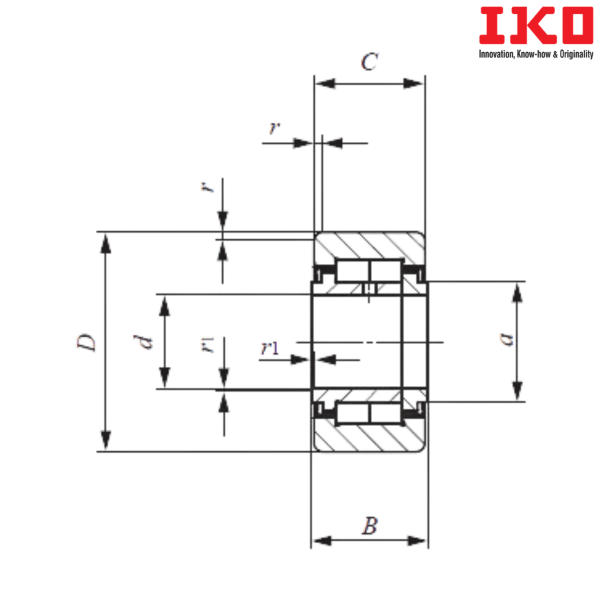

Bore Diameter (d) mm - 17
Outer Diameter (D) mm - 47
Width (B) mm - 21
Boundary dimension (C) mm - 20
Boundary dimension (a) mm - 22
Minimum Allowable Value of Chamfer Dimension (rs) mm - 1
Minimum Allowable Value of Chamfer Dimension (r1s) mm - 0.3
Basic Dynamic Load Rating (C) N - 25200
Basic Static Load Rating (C0) N - 30900
Maximum allowable static load (N) - 30900
Bearing with Cylindrical Outer Ring - NURT 17-1 R
Weight (kg) - 0.222

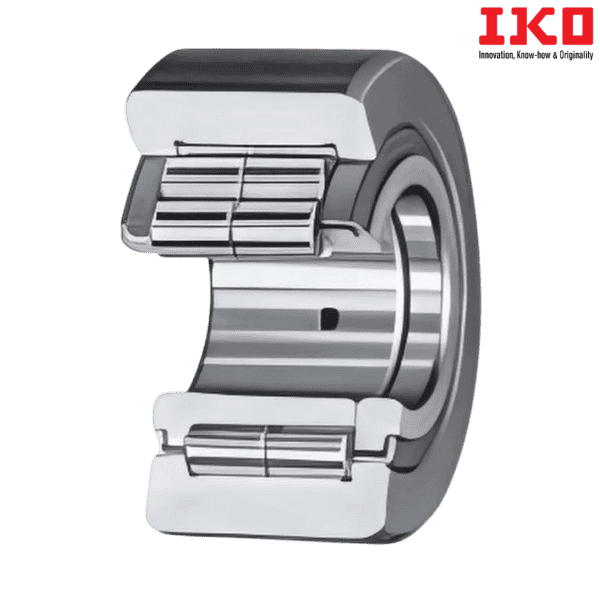

** Images are for representation purposes only
