Description
Brand - IKO
Item Number - NURT 15 IKO
Also Known As - NURT15
Category - Cylindrical Roller Followers Full Complement Type/With Inner Ring
Type - With Cylindrical Outer Ring
Shaft Diameter (mm) - 15
Bore Diameter (d) mm - 15
Outer Diameter (D) mm - 35
Width (B) mm - 19
Boundary dimension (C) mm - 18
Boundary dimension (a) mm - 20
Minimum Allowable Value of Chamfer Dimension (rs) mm - 0.6
Minimum Allowable Value of Chamfer Dimension (r1s) mm - 0.3
Basic Dynamic Load Rating (C) N - 23400
Basic Static Load Rating (C0) N - 27300
Maximum allowable static load (N) - 11800
Bearing with Cylindrical Outer Ring - NURT 15 R
Weight (kg) - 0.1

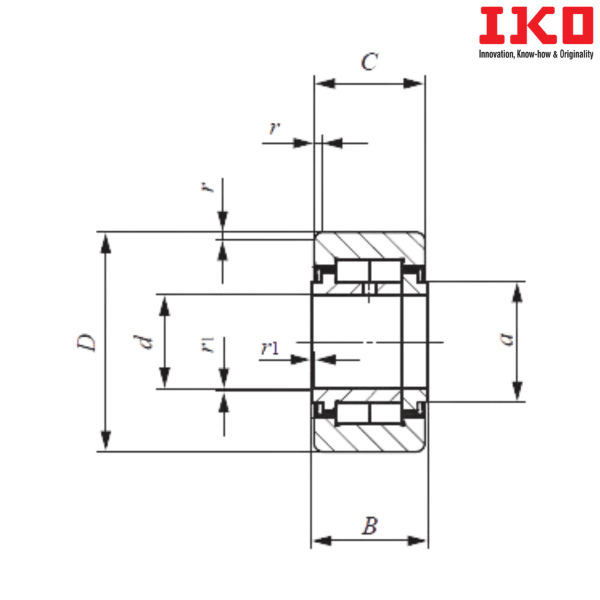

** Images are for representation purposes only
