Description
Brand - NILOS
Item Number - NUP 314 AV NILOS
Category - NILOS-RING for Single Row Cylindrical Roller Bearing
Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (d) - 70 mm
Outer Diameter (a) - 137 mm
Dimension (C) - 110 mm
Widtth (h) - 3.5 mm
Material Thickness (s) - 0.5 mm

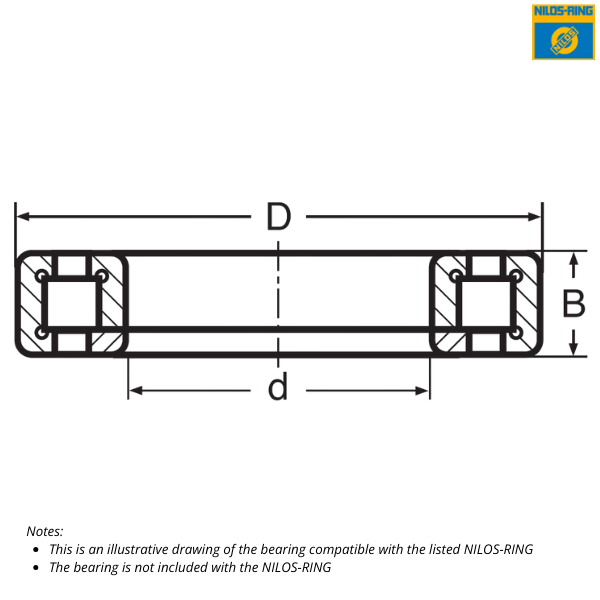

Description of Compatible Bearing (NUP 3 Series) :
Bearing Part Number - NUP 314
Bearing Type - Single Row Cylindrical Roller Bearing
Inner Diameter (d) - 70 mm
Outer Diameter (D) - 150 mm
Width (B) - 35 mm
♦♦ Images are for representation purposes only
Item Number - NUP 314 AV NILOS
Category - NILOS-RING for Single Row Cylindrical Roller Bearing
Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (d) - 70 mm
Outer Diameter (a) - 137 mm
Dimension (C) - 110 mm
Widtth (h) - 3.5 mm
Material Thickness (s) - 0.5 mm
Description of Compatible Bearing (NUP 3 Series) :
Bearing Part Number - NUP 314
Bearing Type - Single Row Cylindrical Roller Bearing
Inner Diameter (d) - 70 mm
Outer Diameter (D) - 150 mm
Width (B) - 35 mm
♦♦ Images are for representation purposes only
