Description
Brand - NILOS
Item Number - NUP 304 AV NILOS
Category - NILOS-RING for Single Row Cylindrical Roller Bearing
Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (d) - 20 mm
Outer Diameter (a) - 44.8 mm
Dimension (C) - 33 mm
Widtth (h) - 2 mm
Material Thickness (s) - 0.3 mm

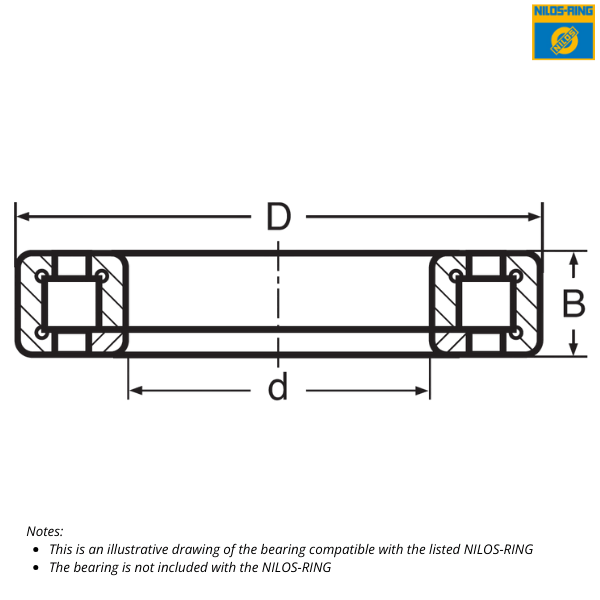

Description of Compatible Bearing (NUP 3 Series) :
Bearing Part Number - NUP 304
Bearing Type - Single Row Cylindrical Roller Bearing
Inner Diameter (d) - 20 mm
Outer Diameter (D) - 52 mm
Width (B) - 15 mm
♦♦ Images are for representation purposes only
Item Number - NUP 304 AV NILOS
Category - NILOS-RING for Single Row Cylindrical Roller Bearing
Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (d) - 20 mm
Outer Diameter (a) - 44.8 mm
Dimension (C) - 33 mm
Widtth (h) - 2 mm
Material Thickness (s) - 0.3 mm
Description of Compatible Bearing (NUP 3 Series) :
Bearing Part Number - NUP 304
Bearing Type - Single Row Cylindrical Roller Bearing
Inner Diameter (d) - 20 mm
Outer Diameter (D) - 52 mm
Width (B) - 15 mm
♦♦ Images are for representation purposes only
