Description
Brand - NILOS
Item Number - NUP 2332 AV NILOS
Category - NILOS-RING for Single Row Cylindrical Roller Bearing
Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (d) - 160 mm
Outer Diameter (a) - 314 mm
Dimension (C) - 260 mm
Widtth (h) - 5 mm
Material Thickness (s) - 0.5 mm

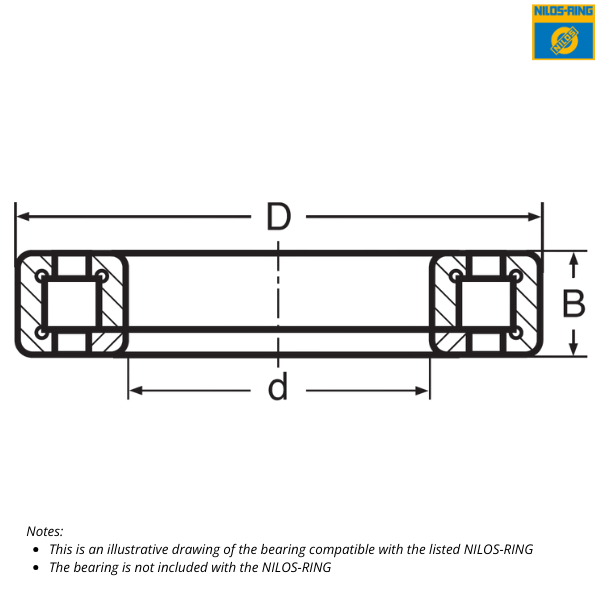

Description of Compatible Bearing (NUP 23 Series) :
Bearing Part Number - NUP 2332
Bearing Type - Single Row Cylindrical Roller Bearing
Inner Diameter (d) - 160 mm
Outer Diameter (D) - 340 mm
Width (B) - 114 mm
♦♦ Images are for representation purposes only
Item Number - NUP 2332 AV NILOS
Category - NILOS-RING for Single Row Cylindrical Roller Bearing
Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (d) - 160 mm
Outer Diameter (a) - 314 mm
Dimension (C) - 260 mm
Widtth (h) - 5 mm
Material Thickness (s) - 0.5 mm
Description of Compatible Bearing (NUP 23 Series) :
Bearing Part Number - NUP 2332
Bearing Type - Single Row Cylindrical Roller Bearing
Inner Diameter (d) - 160 mm
Outer Diameter (D) - 340 mm
Width (B) - 114 mm
♦♦ Images are for representation purposes only
