Description
Brand - NILOS
Item Number - NUP 2326 JV NILOS

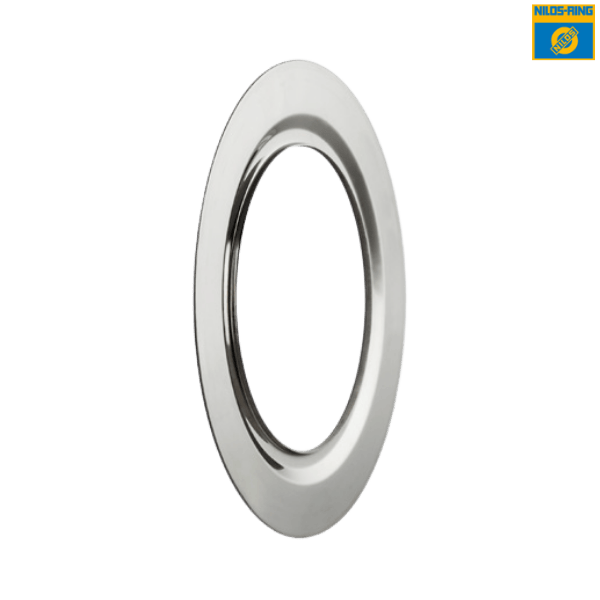

Category - NILOS-RING for Single Row Cylindrical Roller Bearing
Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (i) - 148 mm
Dimension (c) - 225 mm
Outer Diamter (D) - 280 mm
Width (h) - 5 mm
Material Thickness (s) - 0.5 mm
Description of Compatible Bearing (NUP 23 Series) :
Bearing Part Number - NUP 2326
Bearing Type - Double Row Self-Aligning Ball Bearing
Inner Diameter (d) - 130 mm
Outer Diameter (D) - 280 mm
Width (B) - 93 mm
♦ ♦ Images are for representation purposes only
Item Number - NUP 2326 JV NILOS
Category - NILOS-RING for Single Row Cylindrical Roller Bearing
Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (i) - 148 mm
Dimension (c) - 225 mm
Outer Diamter (D) - 280 mm
Width (h) - 5 mm
Material Thickness (s) - 0.5 mm
Description of Compatible Bearing (NUP 23 Series) :
Bearing Part Number - NUP 2326
Bearing Type - Double Row Self-Aligning Ball Bearing
Inner Diameter (d) - 130 mm
Outer Diameter (D) - 280 mm
Width (B) - 93 mm
♦ ♦ Images are for representation purposes only
