NUCF 30 BR IKO

Brand - IKO

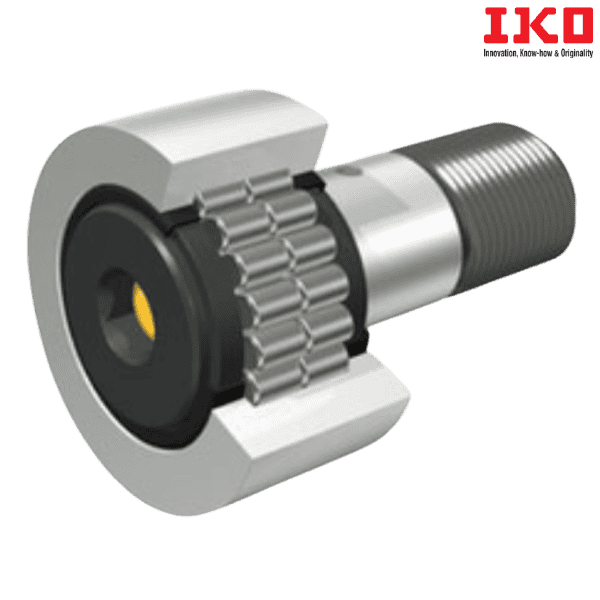

Category - Cylindrical Roller Cam Followers (Full Complement Type/Stud Head Hex Hole)
Item Number - NUCF 30 BR IKO
Also Known As - NUCF30BR
Stud Diameter (mm) - 30
Weight (kg) - 1.6

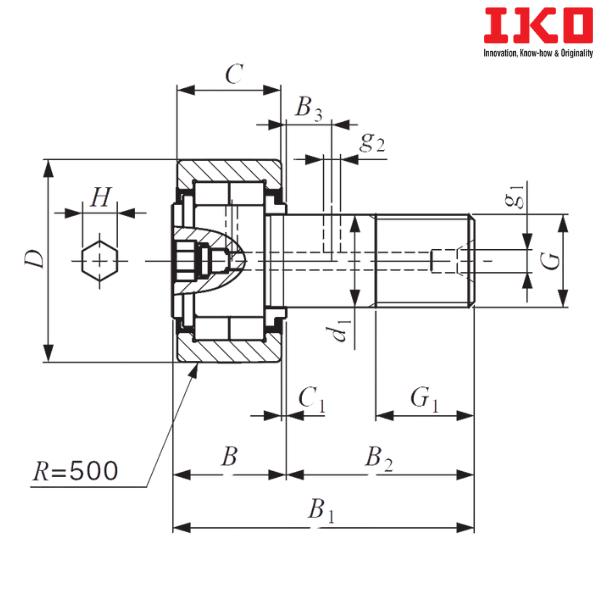

Outside Diameter of Outer Diameter (D) mm - 80
Width of Outer Ring (C) mm - 35
Boundary Dimension (d1) mm - 30
G - M30 × 1.5
Boundary Dimension (G1) mm - 32
Maximum Boundary Dimension (B) mm - 37
Maximum Boundary Dimension (B1) mm - 100
Boundary Dimension (B2) mm - 63
Boundary Dimension (B3) mm - 15
Boundary Dimension (C1) mm - 1
Boundary Dimension (g1) mm - 6
Boundary Dimension (g2) mm - 4
Boundary Dimension (H) mm - 17

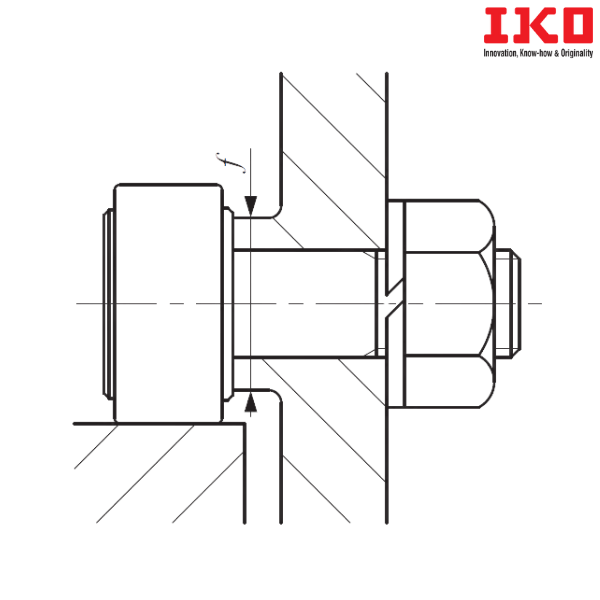

Minimum Mounting Dimension (f min) mm - 45
Maximum Tightening Torque (N-m) - 438
Basic Dynamic Load Rating (C) N - 90300
Basic Static Load Rating (C0) N - 121000
Maximum Allowable Static Load (N) - 98300

Notes :

Descriptions of Prefixes and Suffixes :
-----------------------------------------------------
NUCF....B - Cylindrical Roller Cam Followers
R - With Crowned Outer Ring

** Images are for representation purposes only
