NUCF 24-1 BR IKO

Brand - IKO

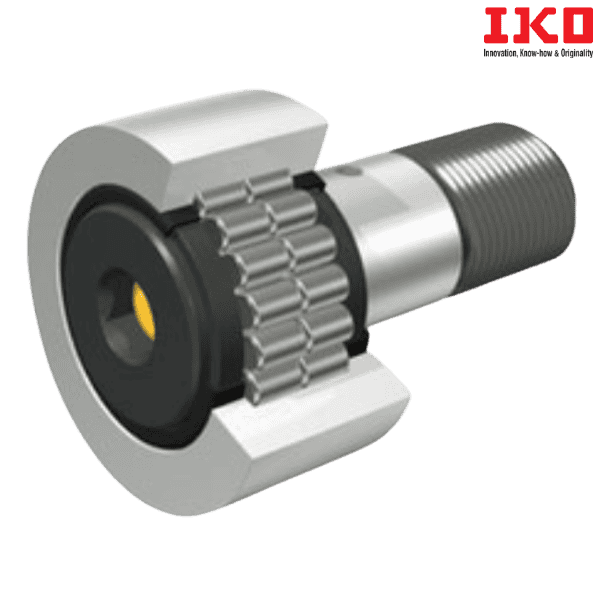

Category - Cylindrical Roller Cam Followers (Full Complement Type/Stud Head Hex Hole)
Item Number - NUCF 24-1 BR IKO
Also Known As - NUCF24-1BR
Stud Diameter (mm) - 24
Weight (kg) - 1.02

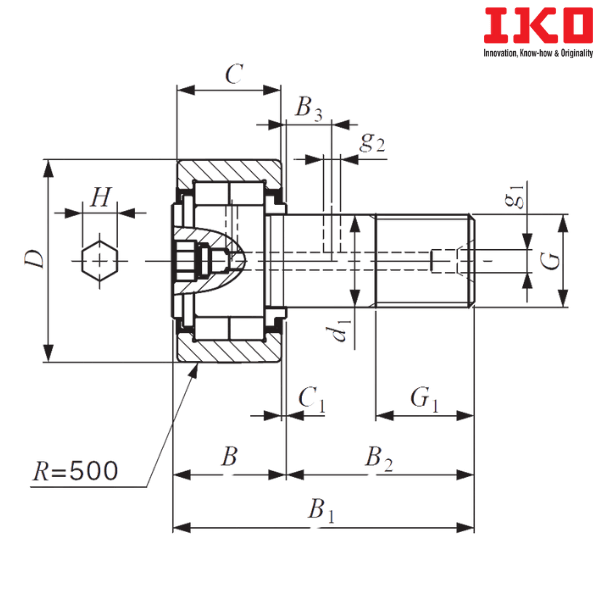

Outside Diameter of Outer Diameter (D) mm - 72
Width of Outer Ring (C) mm - 29
Boundary Dimension (d1) mm - 24
G - M24 × 1.5
Boundary Dimension (G1) mm - 25
Maximum Boundary Dimension (B) mm - 30.6
Maximum Boundary Dimension (B1) mm - 80.1
Boundary Dimension (B2) mm - 49.5
Boundary Dimension (B3) mm - 11
Boundary Dimension (C1) mm - 0.8
Boundary Dimension (g1) mm - 6
Boundary Dimension (g2) mm - 4
Boundary Dimension (H) mm - 12

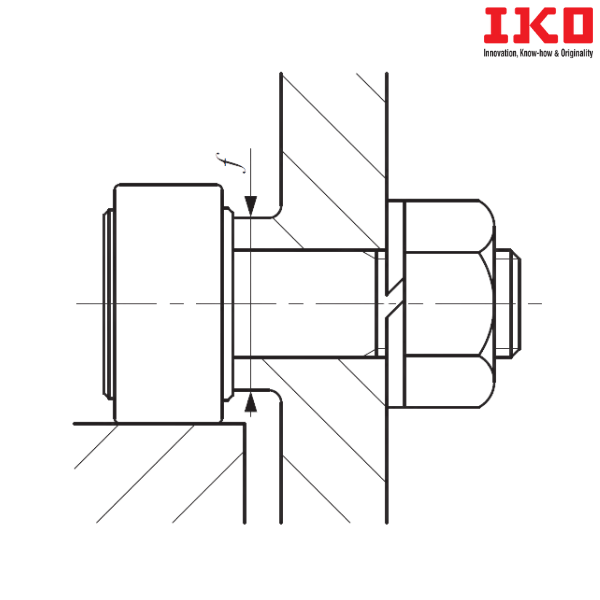

Minimum Mounting Dimension (f min) mm - 44
Maximum Tightening Torque (N-m) - 215
Basic Dynamic Load Rating (C) N - 63900
Basic Static Load Rating (C0) N - 88800
Maximum Allowable Static Load (N) - 57000

Notes :

Descriptions of Prefixes and Suffixes :
-----------------------------------------------------
NUCF....B - Cylindrical Roller Cam Followers
R - With Crowned Outer Ring

** Images are for representation purposes only
