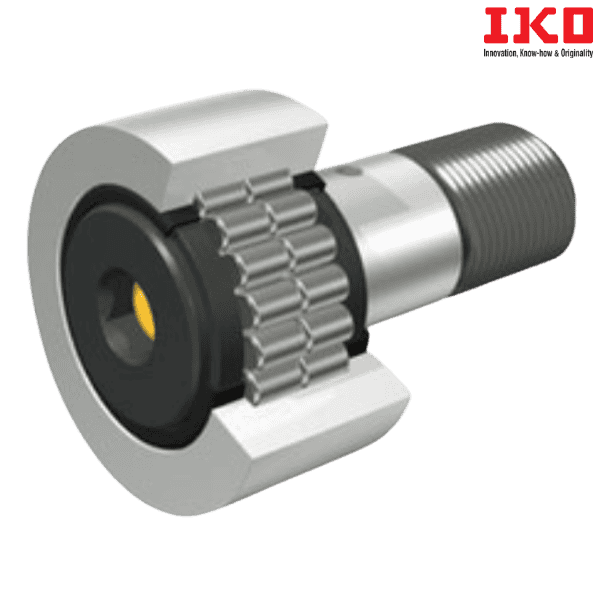

NUCF 16 BR IKO

Brand - IKO
Category - Cylindrical Roller Cam Followers (Full Complement Type/Stud Head Hex Hole)
Item Number - NUCF 16 BR IKO
Also Known As - NUCF16BR
Stud Diameter (mm) - 16
Weight (kg) - 0.167

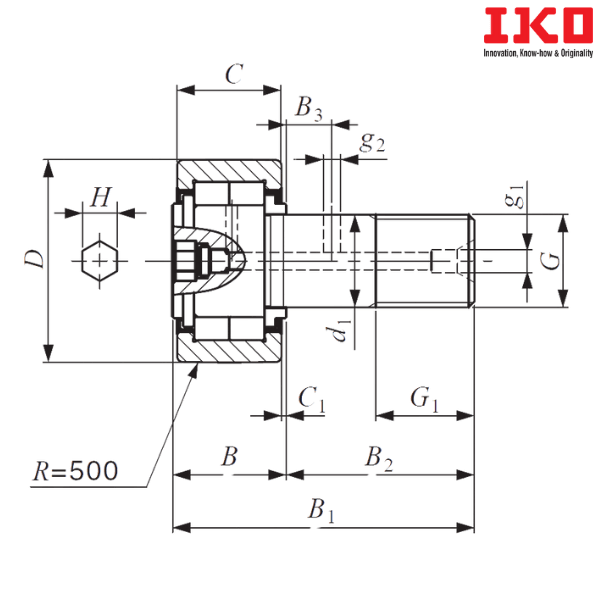

Outside Diameter of Outer Diameter (D) mm - 35
Width of Outer Ring (C) mm - 18
Boundary Dimension (d1) mm - 16
G - M16 × 1.5
Boundary Dimension (G1) mm - 17
Maximum Boundary Dimension (B) mm - 19.6
Maximum Boundary Dimension (B1) mm - 52.1
Boundary Dimension (B2) mm - 32.5
Boundary Dimension (B3) mm - 8
Boundary Dimension (C1) mm - 0.8
Boundary Dimension (g1) mm - 4
Boundary Dimension (g2) mm - 3
Boundary Dimension (H) mm - 6

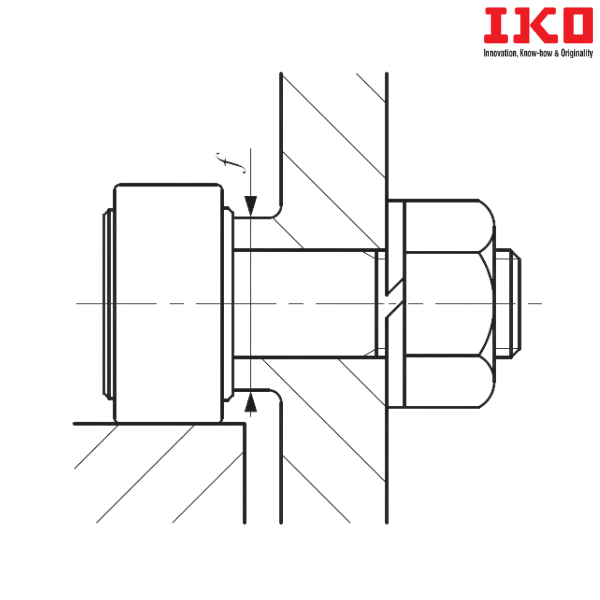

Minimum Mounting Dimension (f min) mm - 20
Maximum Tightening Torque (N-m) - 58.5
Basic Dynamic Load Rating (C) N - 23400
Basic Static Load Rating (C0) N - 27300
Maximum Allowable Static Load (N) - 11800

Notes :

Descriptions of Prefixes and Suffixes :
-----------------------------------------------------
NUCF....B - Cylindrical Roller Cam Followers
R - With Crowned Outer Ring

** Images are for representation purposes only
