NUCF 10 BR IKO

Brand - IKO
Category - Cylindrical Roller Cam Followers (Full Complement Type/Stud Head Hex Hole)
Item Number - NUCF 10 BR IKO
Also Known As - NUCF10BR
Stud Diameter (mm) - 10
Weight (kg) - 0.044

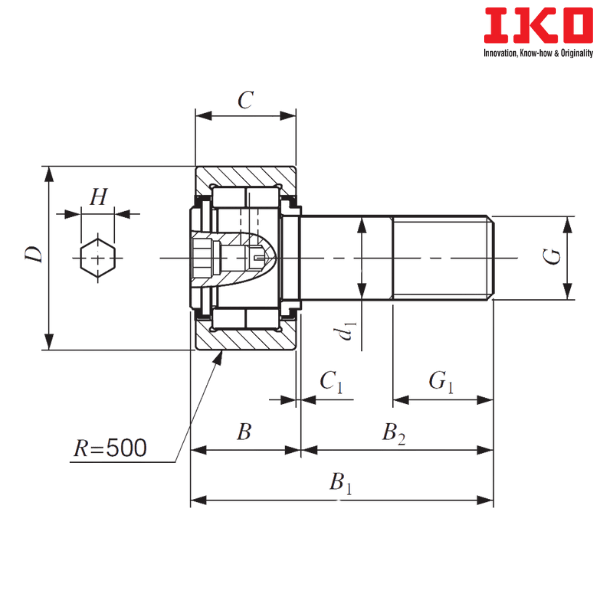

Outside Diameter of Outer Diameter (D) mm - 22
Width of Outer Ring (C) mm - 12
Boundary Dimension (d1) mm - 10
G - M10 × 1.25
Boundary Dimension (G1) mm - 12
Maximum Boundary Dimension (B) mm - 13.2
Maximum Boundary Dimension (B1) mm - 13.2
Boundary Dimension (B2) mm - 23
Boundary Dimension (C1) mm - 0.6
Boundary Dimension (H) mm - 4

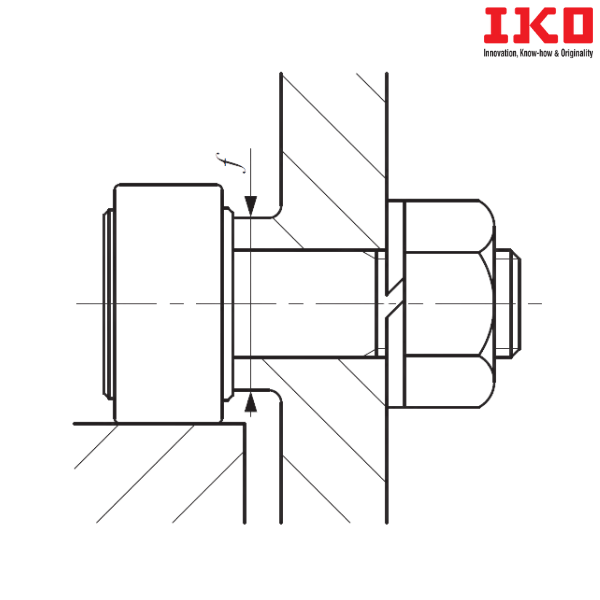

Minimum Mounting Dimension (f min) mm - 12
Maximum Tightening Torque (N-m) - 13.8
Basic Dynamic Load Rating (C) N - 10400
Basic Static Load Rating (C0) N - 11500
Maximum Allowable Static Load (N) - 5300

Notes :

Descriptions of Prefixes and Suffixes :
-----------------------------------------------------

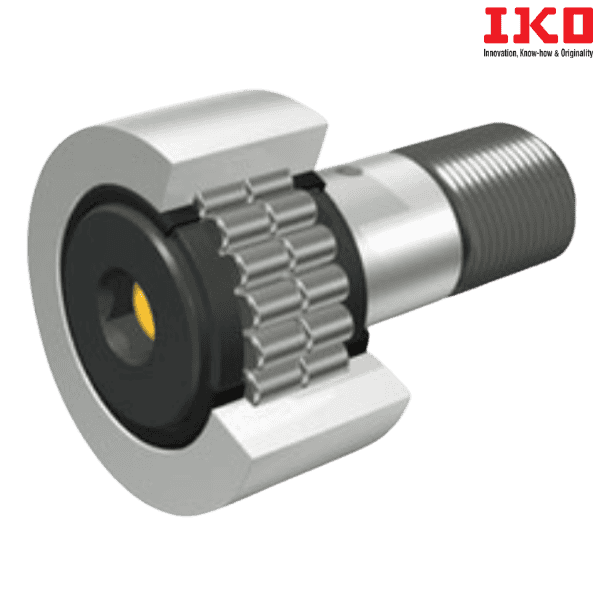

NUCF....B - Cylindrical Roller Cam Followers
R - With Crowned Outer Ring

** Images are for representation purposes only
