Description
Brand - SCHEERER
Item Number - NUB-210-EM SCHEERER

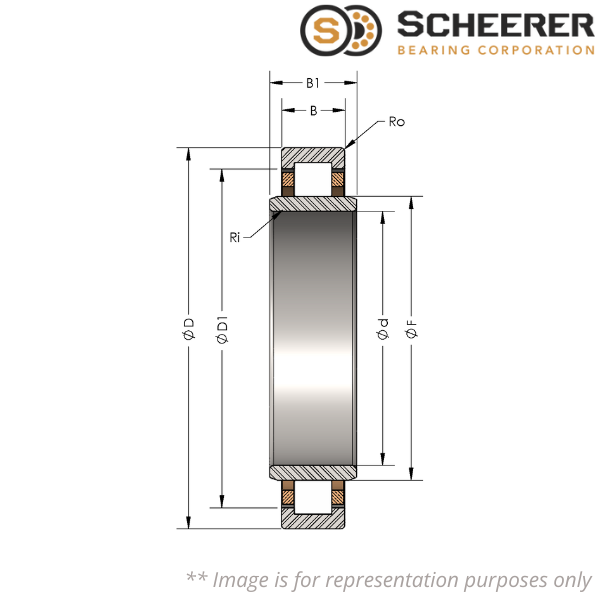

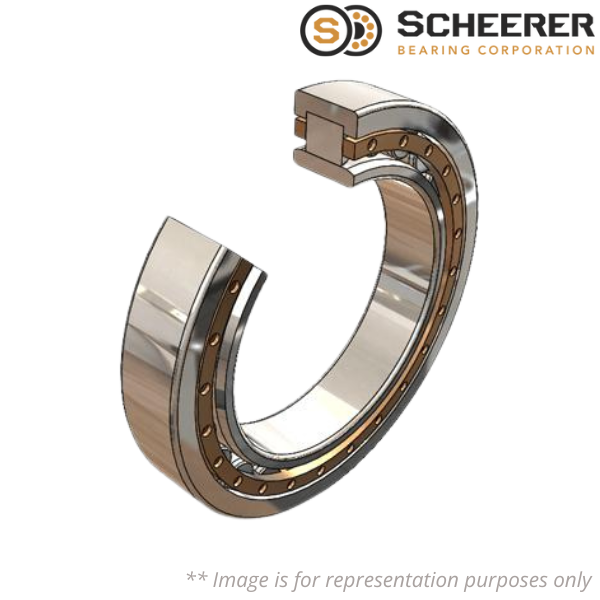

Category - Radial Cylindrical Roller Bearing Single Row (Extended Inner Ring)
Configuration - NUB
Inner Diameter (d) mm - 50
Outer Diameter (D) mm - 90
Width (b) mm - 23
Weight (M) kg - 0.64
Dynamic Capacity (C) kg - 73.5
Static Capacity (Co) kg - 69.5
