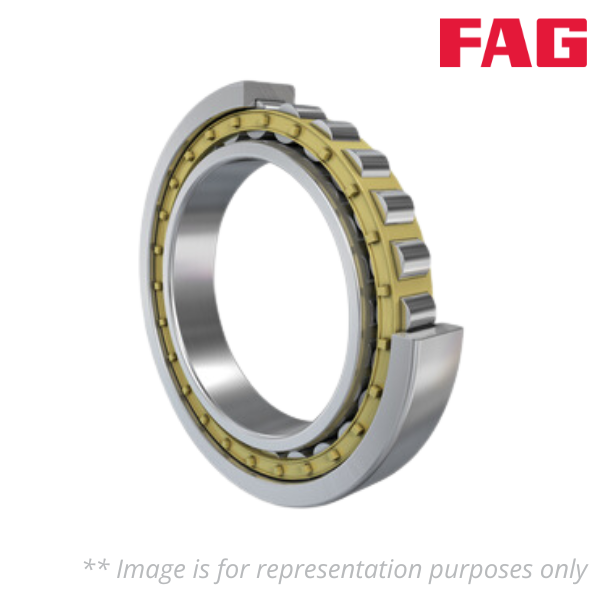

NU3964-E-M1 FAG

Brand - FAG
Item Number - NU3964-E-M1 FAG
Weight (kg) - 41.5

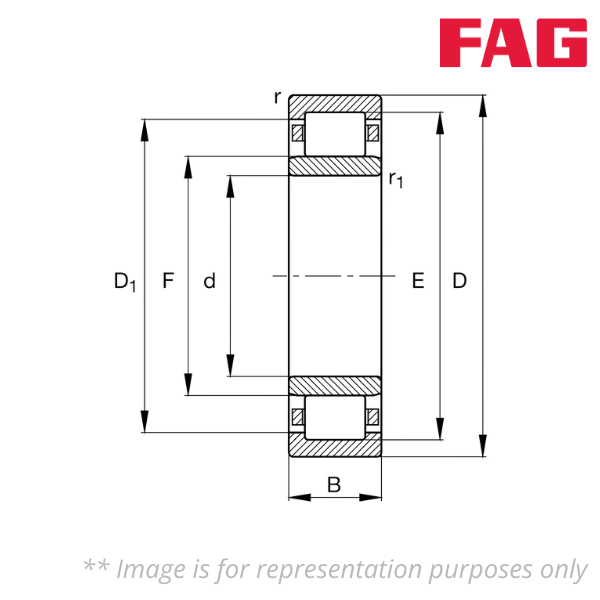

Inner Diameter (d) mm - 320
Outer Diameter (D) mm - 440
Inner Width (B) mm - 90
Minimum Chamfer Dimension (r) mm - 3
Minimum Chamfer Dimension (r1) mm - 3

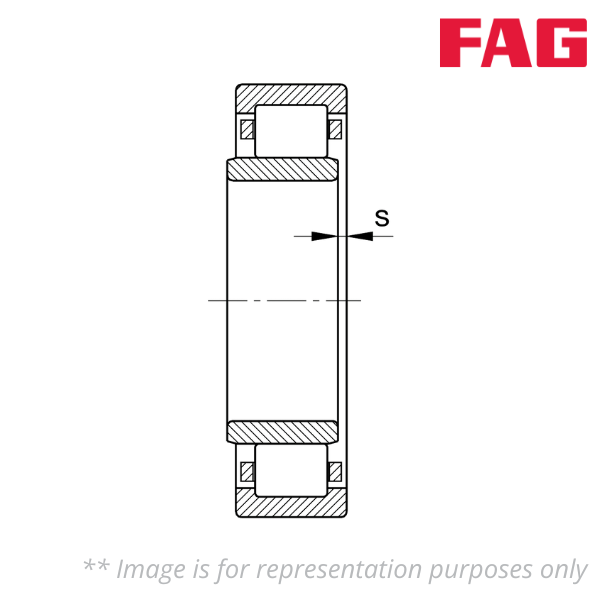

Axial Displacement (s) mm - 4.7
Raceway Diameter Outer Ring (E) mm - 414
Raceway Diameter Inner Ring (F) mm - 350
Shoulder Diameter Outer Ring (D1) mm - 403.3
Minimum Diameter of Shaft Shoulder (da) mm - 332
Maximum Diameter of Shaft Shoulder (da) mm - 346
Minimum Shaft Shoulder (db) mm - 354
Maximum Diameter of Housing Shoulder (Da) mm - 428
Maximum Fillet Radius of Shaft (ra) mm - 2.5
Maximum Fillet Radius of Housing (ra1) mm - 2.5
Basic Dynamic Load Rating (Cr) kN - 1220
Basic Static Load Rating (C0r) kN - 2550
Fatigue Limit Load (Cur) kN - 255
Limiting Speed (nG) rpm - 2400
Reference Speed (nB) rpm - 900
