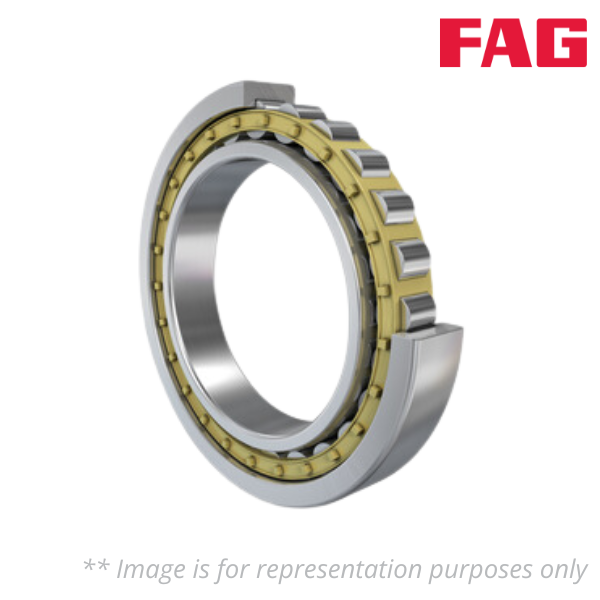

NU38/500-M1 FAG

Brand - FAG
Item Number - NU38/500-M1 FAG
Weight (kg) - 60.5

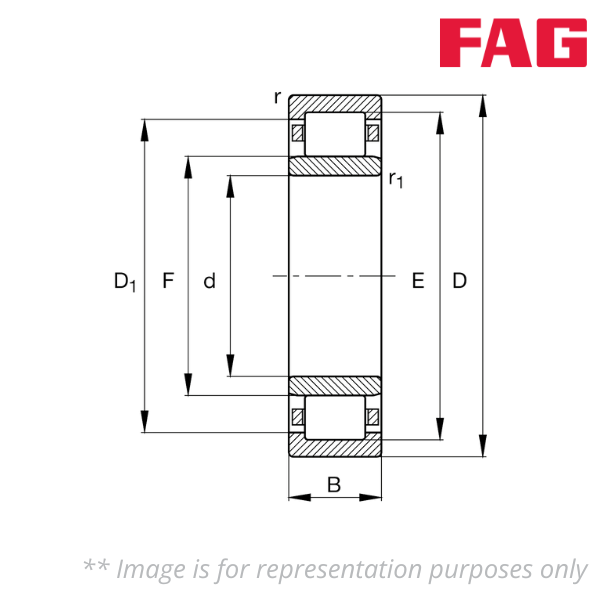

Inner Diameter (d) mm - 500
Outer Diameter (D) mm - 620
Inner Width (B) mm - 90
Minimum Chamfer Dimension (r) mm - 3
Minimum Chamfer Dimension (r1) mm - 3

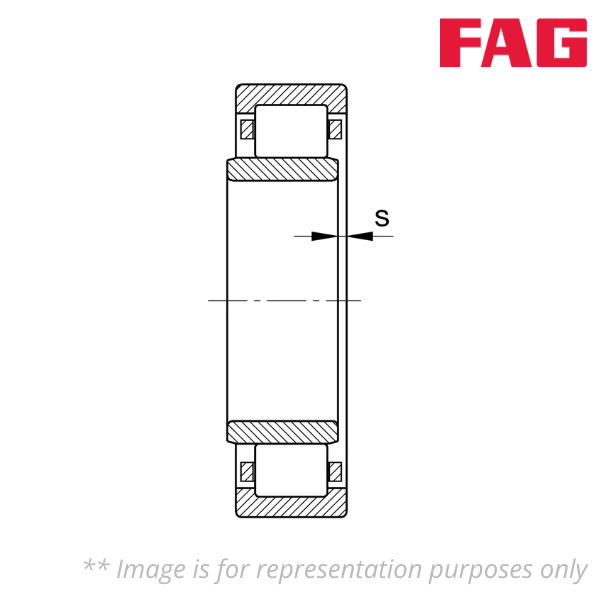

Axial Displacement (s) mm - 10
Raceway Diameter Outer Ring (E) mm - 590
Raceway Diameter Inner Ring (F) mm - 534
Shoulder Diameter Outer Ring (D1) mm - 580
Minimum Diameter of Shaft Shoulder (da) mm - 512
Maximum Diameter of Shaft Shoulder (da) mm - 530
Minimum Shaft Shoulder (db) mm - 538
Maximum Diameter of Housing Shoulder (Da) mm - 608
Maximum Fillet Radius of Shaft (ra) mm - 2.5
Maximum Fillet Radius of Housing (ra1) mm - 2.5
Basic Dynamic Load Rating (Cr) kN - 1250
Basic Static Load Rating (C0r) kN - 3250
Fatigue Limit Load (Cur) kN - 290
Limiting Speed (nG) rpm - 1600
Reference Speed (nB) rpm - 560
