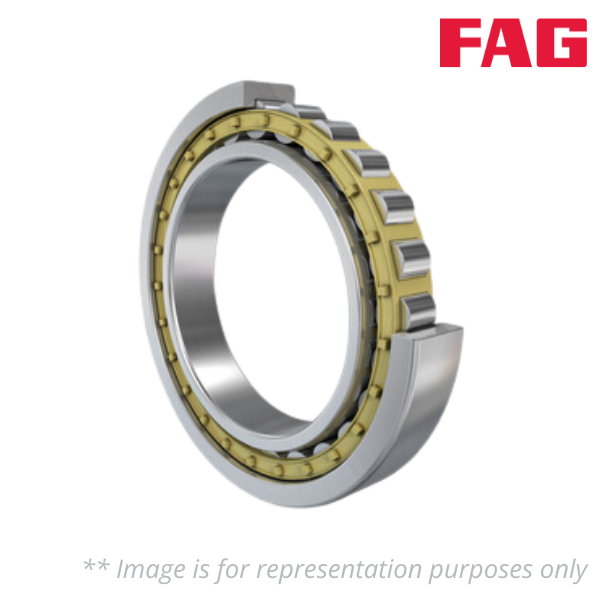

NU348-E-M1 FAG

Brand - FAG
Item Number - NU348-E-M1 FAG
Weight (Kg) - 95.7

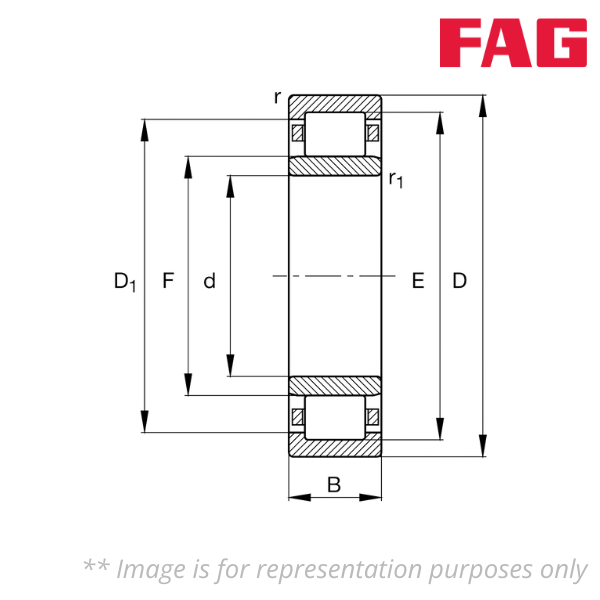

Inner Diameter (d) mm - 240
Outer Diameter (D) mm - 500
Inner Width (B) mm - 95
Minimum Chamfer Dimension (r) mm - 5
Minimum Chamfer Dimension (r1) mm - 5

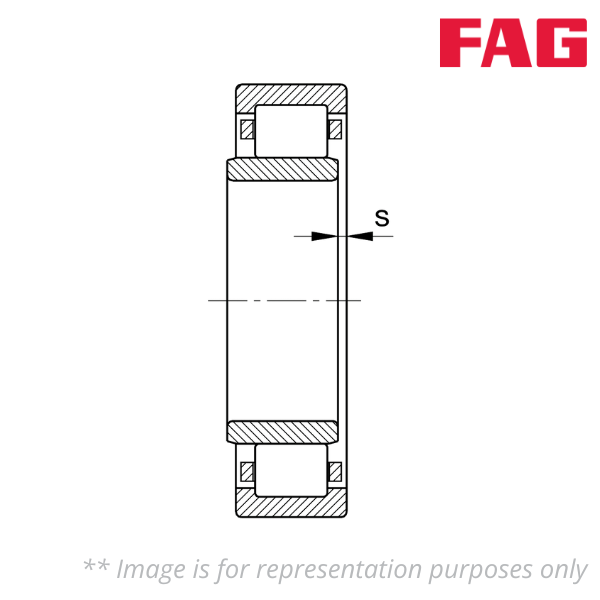

Axial Displacement (s) mm - 7.4
Raceway Diameter Outer Ring (E) mm - 442
Raceway Diameter Inner Ring (F) mm - 306
Shoulder Diameter Outer Ring (D1) mm - 421.2
Minimum Diameter of Shaft Shoulder (da) mm - 260
Maximum Diameter of Shaft Shoulder (da) mm - 303
Minimum Shaft Shoulder (db) mm - 309
Maximum Diameter of Housing Shoulder (Da) mm - 480
Maximum Fillet Radius of Shaft (ra) mm - 4
Maximum Fillet Radius of Housing (ra1) mm - 4
Basic Dynamic Load Rating (Cr) kN - 1730
Basic Static Load Rating (C0r) kN - 2280
Fatigue Limit Load (Cur) kN - 176
Limiting Speed (nG) rpm - 2200
Reference Speed (nB) rpm - 1000
