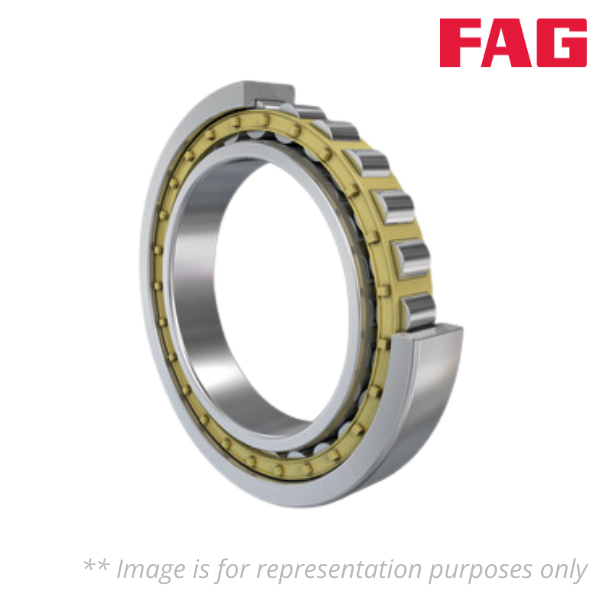

NU30/670-M1 FAG

Brand - FAG
Item Number - NU30/670-M1 FAG
Weight (kg) - 620

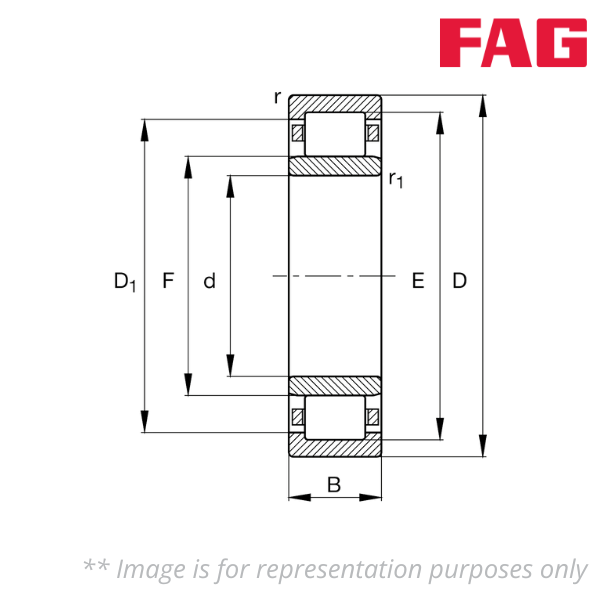

Inner Diameter (d) mm - 670
Outer Diameter (D) mm - 980
Inner Width (B) mm - 230
Minimum Chamfer Dimension (r) mm - 7.5
Minimum Chamfer Dimension (r1) mm - 7.5

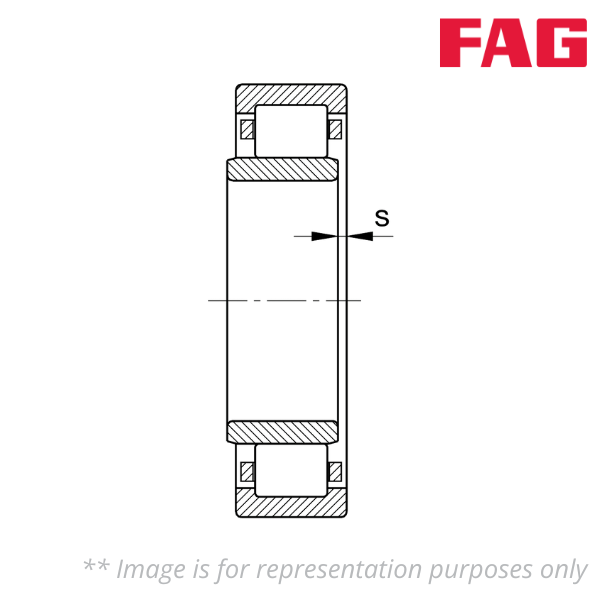

Axial Displacement (s) mm - 20.6
Raceway Diameter Outer Ring (E) mm - 905
Raceway Diameter Inner Ring (F) mm - 745
Shoulder Diameter Outer Ring (D1) mm - 876.2
Minimum Diameter of Shaft Shoulder (da) mm - 698
Maximum Diameter of Shaft Shoulder (da) mm - 740
Minimum Shaft Shoulder (db) mm - 750
Maximum Diameter of Housing Shoulder (Da) mm - 952
Maximum Fillet Radius of Shaft (ra) mm - 6
Maximum Fillet Radius of Housing (ra1) mm - 6
Basic Dynamic Load Rating (Cr) kN - 6550
Basic Static Load Rating (C0r) kN - 14600
Fatigue Limit Load (Cur) kN - 1180
Limiting Speed (nG) rpm - 950
Reference Speed (nB) rpm - 260
