NU29/950-M1 FAG

Brand - FAG
Item Number - NU29/950-M1 FAG
Weight (kg) - 596

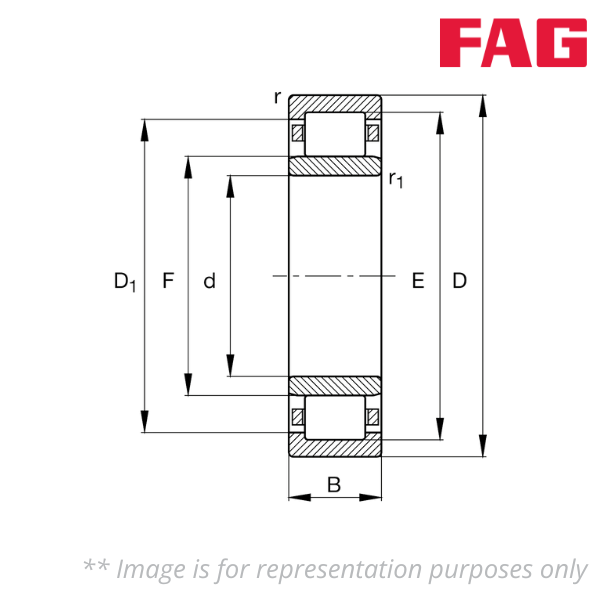

Inner Diameter (d) mm - 950
Outer Diameter (D) mm - 1250
Inner Width (B) mm - 175
Minimum Chamfer Dimension (r) mm - 7.5
Minimum Chamfer Dimension (r1) mm - 7.5

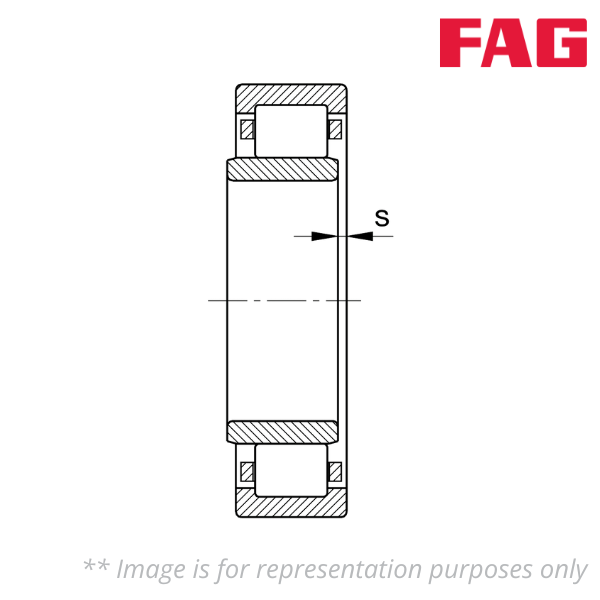

Axial Displacement (s) mm - 14.5
Raceway Diameter Outer Ring (E) mm - 1175
Raceway Diameter Inner Ring (F) mm - 1025
Shoulder Diameter Outer Ring (D1) mm - 1151
Minimum Diameter of Shaft Shoulder (da) mm - 978
Maximum Diameter of Shaft Shoulder (da) mm - 1020
Minimum Shaft Shoulder (db) mm - 1030
Maximum Diameter of Housing Shoulder (Da) mm - 1222
Maximum Fillet Radius of Shaft (ra) mm - 6
Maximum Fillet Radius of Housing (ra1) mm - 6
Basic Dynamic Load Rating (Cr) kN - 5850
Basic Static Load Rating (C0r) kN - 14600
Fatigue Limit Load (Cur) kN - 1090
Limiting Speed (nG) rpm - 750
Reference Speed (nB) rpm - 220
