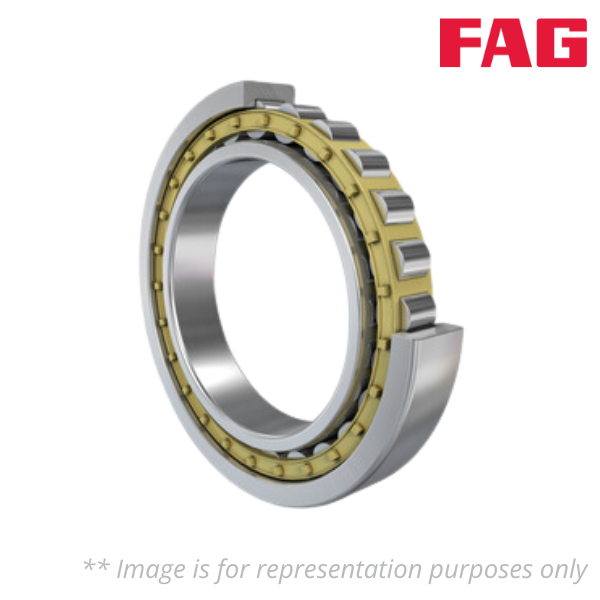

NU29/1320-M1 FAG

Brand - FAG
Item Number - NU29/1320-M1 FAG
Weight (kg) - 1470

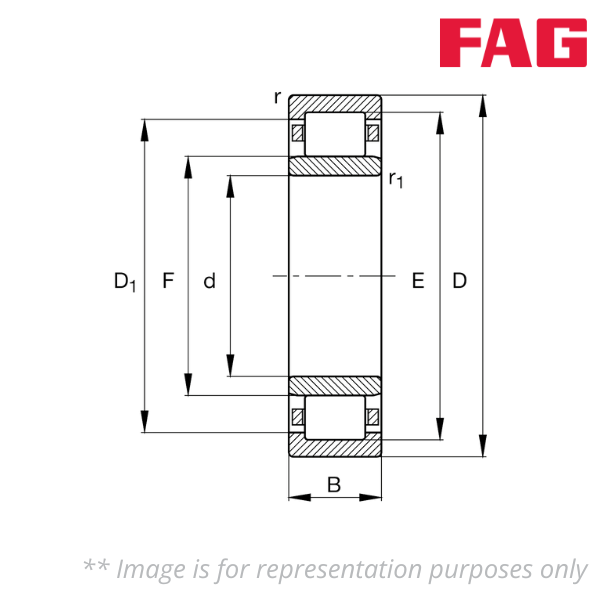

Inner Diameter (d) mm - 1320
Outer Diameter (D) mm - 1720
Inner Width (B) mm - 230
Minimum Chamfer Dimension (r) mm - 7.5
Minimum Chamfer Dimension (r1) mm - 7.5

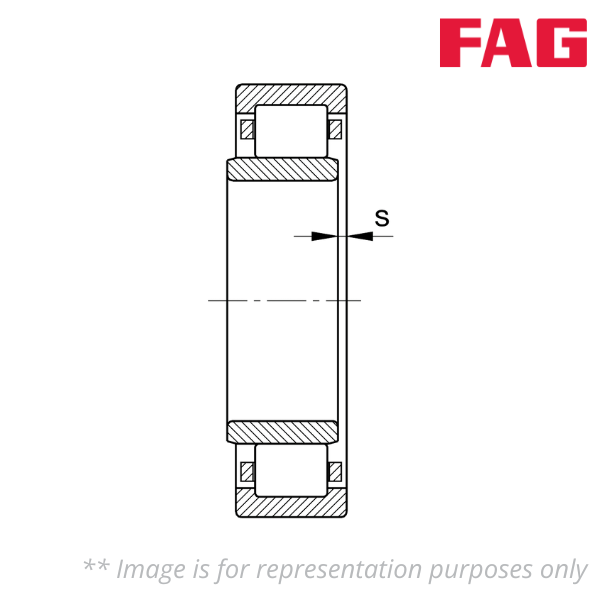

Axial Displacement (s) mm - 17.6
Raceway Diameter Outer Ring (E) mm - 1620
Raceway Diameter Inner Ring (F) mm - 1420
Shoulder Diameter Outer Ring (D1) mm - 1588
Minimum Diameter of Shaft Shoulder (da) mm - 1348
Maximum Diameter of Shaft Shoulder (da) mm - 1415
Minimum Shaft Shoulder (db) mm - 1425
Maximum Diameter of Housing Shoulder (Da) mm - 1692
Maximum Fillet Radius of Shaft (ra) mm - 6
Maximum Fillet Radius of Housing (ra1) mm - 6
Basic Dynamic Load Rating (Cr) kN - 10600
Basic Static Load Rating (C0r) kN - 29000
Fatigue Limit Load (Cur) kN - 1930
Limiting Speed (nG) rpm - 530
Reference Speed (nB) rpm - 120
