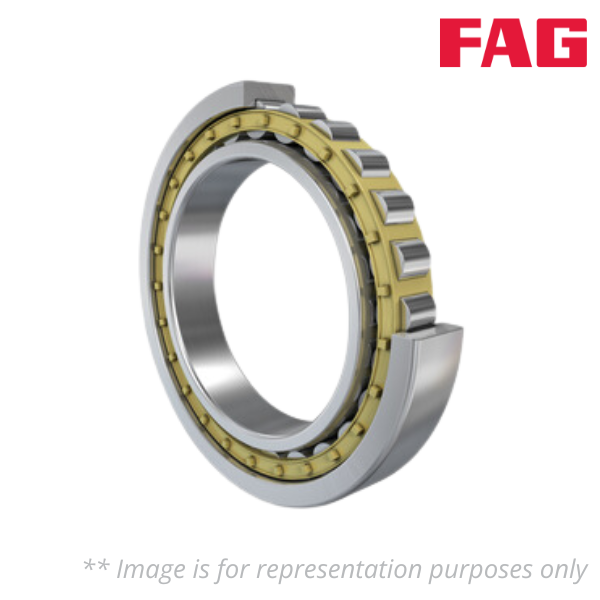

NU29/1250-M1 FAG

Brand - FAG
Item Number - NU29/1250-M1 FAG
Weight (kg) - 1260

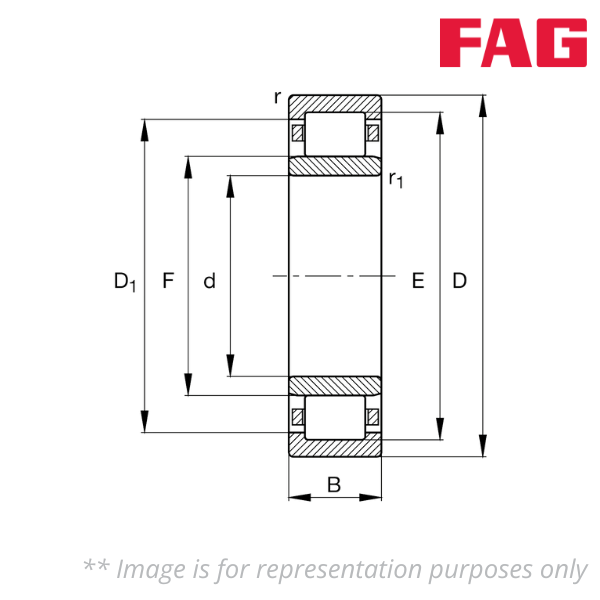

Inner Diameter (d) mm - 1250
Outer Diameter (D) mm - 1630
Inner Width (B) mm - 218
Minimum Chamfer Dimension (r) mm - 7.5
Minimum Chamfer Dimension (r1) mm - 7.5

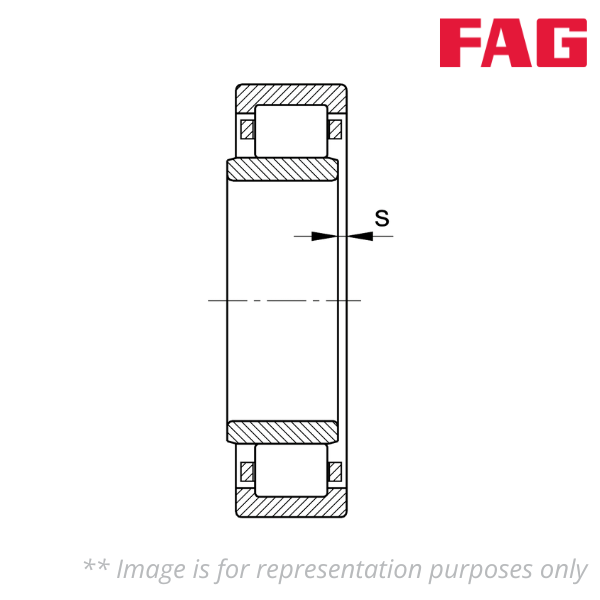

Axial Displacement (s) mm - 10.3
Raceway Diameter Outer Ring (E) mm - 1535
Raceway Diameter Inner Ring (F) mm - 1345
Shoulder Diameter Outer Ring (D1) mm - 1505
Minimum Diameter of Shaft Shoulder (da) mm - 1278
Maximum Diameter of Shaft Shoulder (da) mm - 1340
Minimum Shaft Shoulder (db) mm - 1350
Maximum Diameter of Housing Shoulder (Da) mm - 1602
Maximum Fillet Radius of Shaft (ra) mm - 6
Maximum Fillet Radius of Housing (ra1) mm - 6
Basic Dynamic Load Rating (Cr) kN - 9650
Basic Static Load Rating (C0r) kN - 25500
Fatigue Limit Load (Cur) kN - 1760
Limiting Speed (nG) rpm - 560
Reference Speed (nB) rpm - 140
