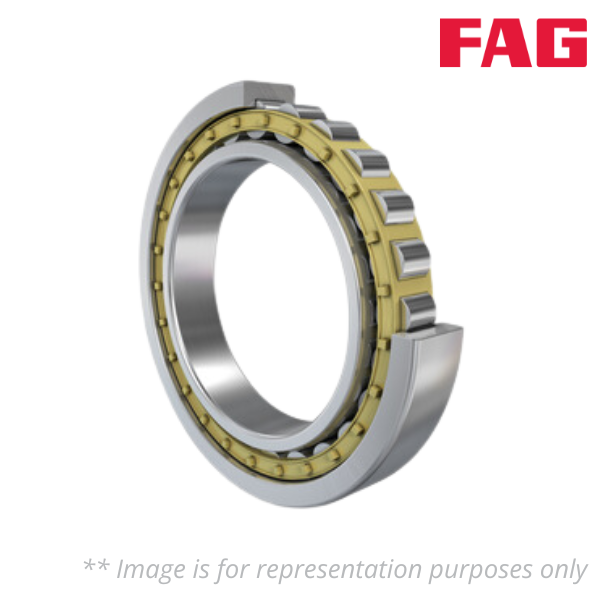

NU29/1060-M1 FAG

Brand - FAG
Item Number - NU29/1060-M1 FAG
Weight (kg) - 830
Inner Diameter (d) mm - 1060
Outer Diameter (D) mm - 1400
Inner Width (B) mm - 195
Minimum Chamfer Dimension (r) mm - 7.5
Minimum Chamfer Dimension (r1) mm - 7.5

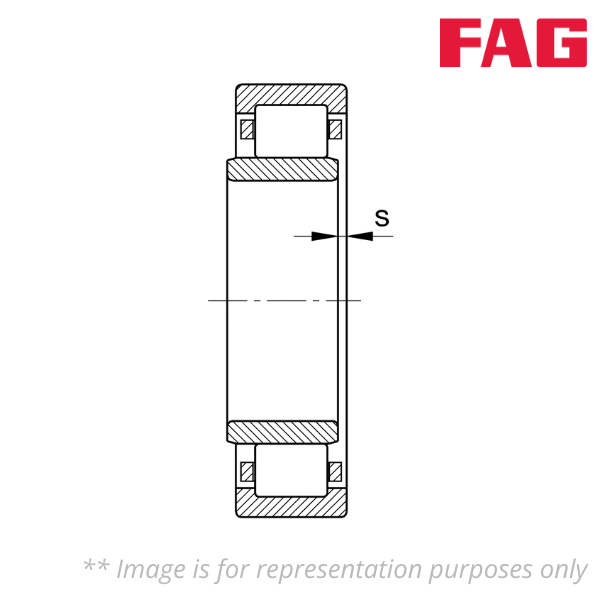

Axial Displacement (s) mm - 16.2
Raceway Diameter Outer Ring (E) mm - 1315
Raceway Diameter Inner Ring (F) mm - 1145
Shoulder Diameter Outer Ring (D1) mm - 1288
Minimum Diameter of Shaft Shoulder (da) mm - 1088
Maximum Diameter of Shaft Shoulder (da) mm - 1140
Minimum Shaft Shoulder (db) mm - 1150
Maximum Diameter of Housing Shoulder (Da) mm - 1372
Maximum Fillet Radius of Shaft (ra) mm - 6
Maximum Fillet Radius of Housing (ra1) mm - 6
Basic Dynamic Load Rating (Cr) kN - 7350
Basic Static Load Rating (C0r) kN - 18600
Fatigue Limit Load (Cur) kN - 1330
Limiting Speed (nG) rpm - 700
Reference Speed (nB) rpm - 180
