Description

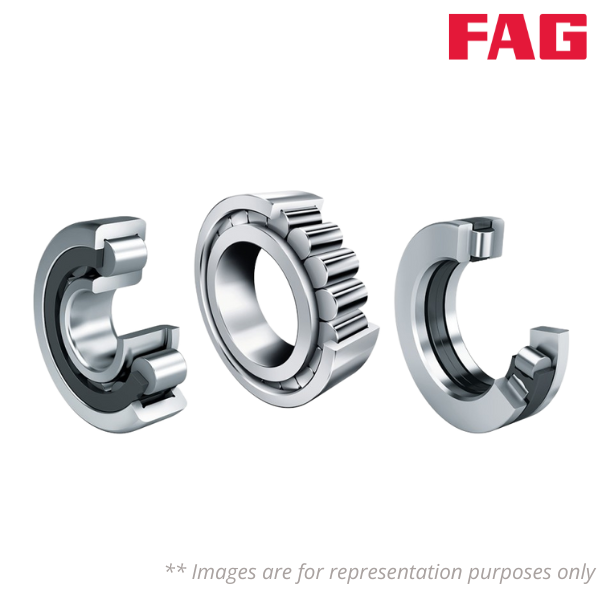

Brand - FAG
Item Number - NU2338-EX-TB-MPAX-J30PC-C3 FAG
Category - Cylindrical Roller Bearing Single Row
Also known as - 820501120030
EAN - 4054366898661
Inner (d) MM - 190
Outer (D) MM - 400
Width (B) MM - 132
Weight (kg) - 82.6
Bore - C - Cylindrical Bore
Seal - No Seal
Cage Type - MA - Brass Cage, Centered on Outer Ring
External Modification - No External Modification
Radial Internal Play - C3 Internal Play (Higher than Cn)
Precision - Durotect B Coating
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C
