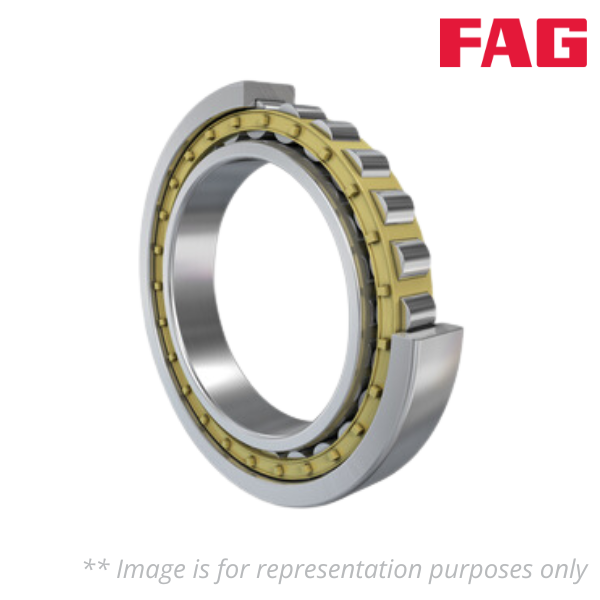

NU2238-E-M1 FAG

Brand - FAG
Item Number - NU2238-E-M1 FAG
Weight (Kg) - 37.1

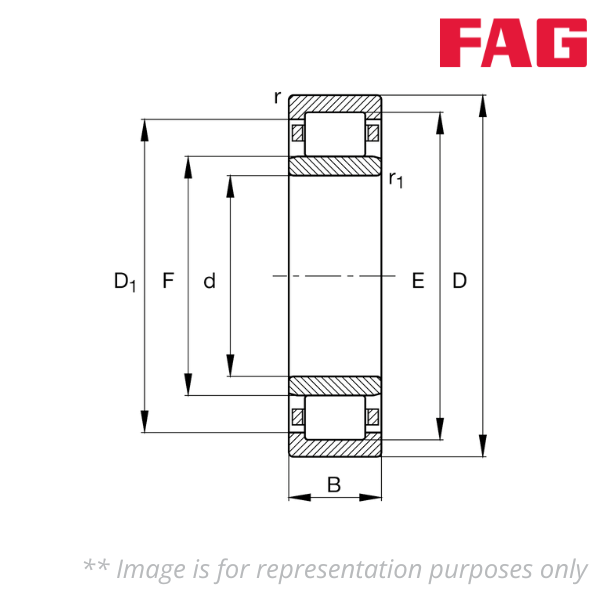

Inner Diameter (d) mm - 190
Outer Diameter (D) mm - 340
Inner Width (B) mm - 92
Minimum Chamfer Dimension (r) mm - 4
Minimum Chamfer Dimension (r1) mm - 4

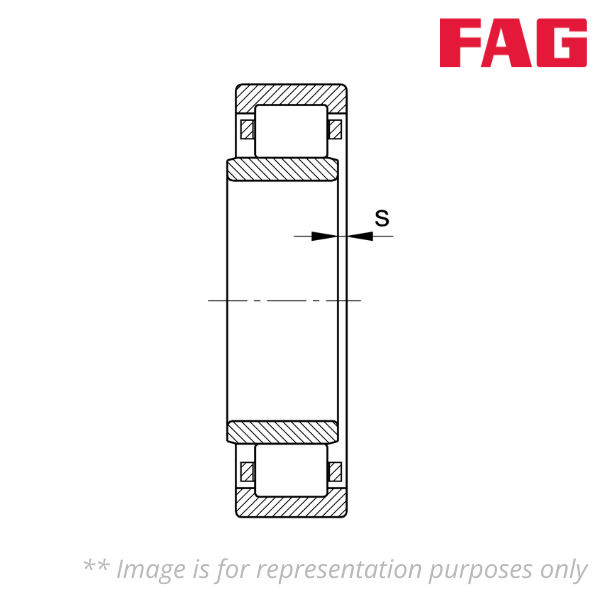

Axial Displacement (s) mm - 8
Raceway Diameter Outer Ring (E) mm - 308
Raceway Diameter Inner Ring (F) mm - 228
Shoulder Diameter Outer Ring (D1) mm - 296.4
Minimum Diameter of Shaft Shoulder (da) mm - 207
Maximum Diameter of Shaft Shoulder (da) mm - 225
Minimum Shaft Shoulder (db) mm - 232
Maximum Diameter of Housing Shoulder (Da) mm - 323
Maximum Fillet Radius of Shaft (ra) mm - 3
Maximum Fillet Radius of Housing (ra1) mm - 3
Basic Dynamic Load Rating (Cr) kN - 1100
Basic Static Load Rating (C0r) kN - 1660
Fatigue Limit Load (Cur) kN - 184
Limiting Speed (nG) rpm - 3000
Reference Speed (nB) rpm - 1290
