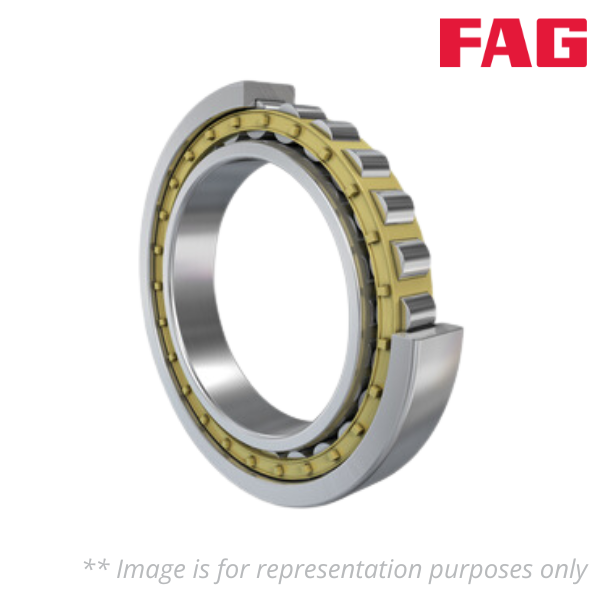

NU19/500-M1 FAG

Brand - FAG
Item Number - NU19/500-M1 FAG
Weight (kg) - 76.8

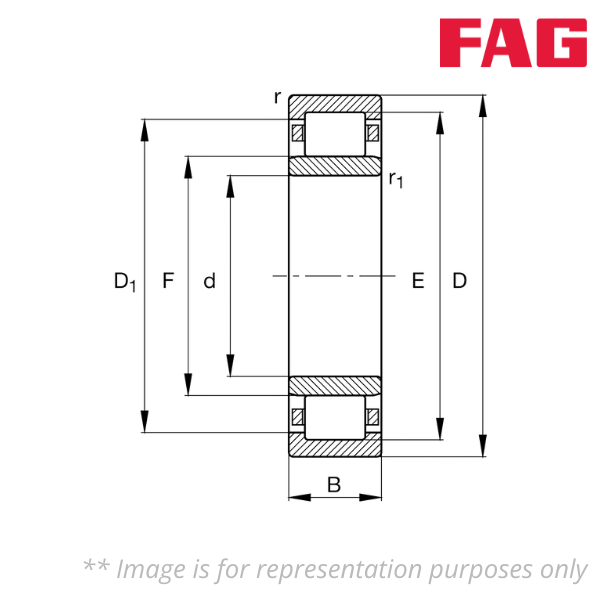

Inner Diameter (d) mm - 500
Outer Diameter (D) mm - 670
Inner Width (B) mm - 78
Minimum Chamfer Dimension (r) mm - 5
Minimum Chamfer Dimension (r1) mm - 5

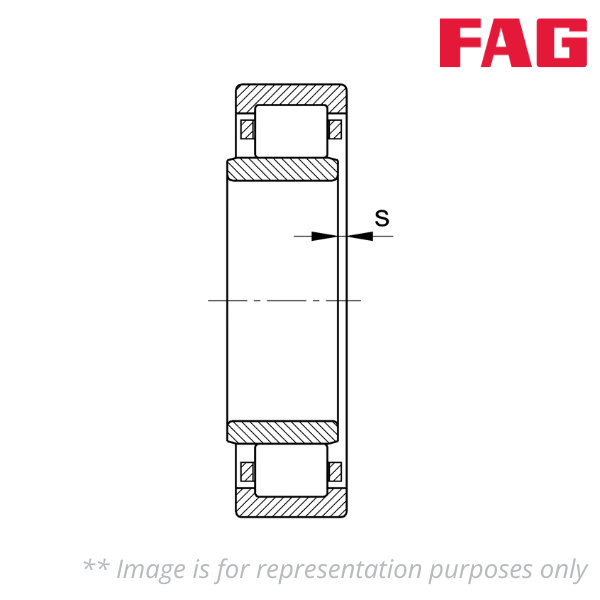

Axial Displacement (s) mm - 8.8
Raceway Diameter Outer Ring (E) mm - 625
Raceway Diameter Inner Ring (F) mm - 545
Shoulder Diameter Outer Ring (D1) mm - 609
Minimum Diameter of Shaft Shoulder (da) mm - 517
Maximum Diameter of Shaft Shoulder (da) mm - 541
Minimum Shaft Shoulder (db) mm - 549
Maximum Diameter of Housing Shoulder (Da) mm - 653
Maximum Fillet Radius of Shaft (ra) mm - 4
Maximum Fillet Radius of Housing (ra1) mm - 4
Basic Dynamic Load Rating (Cr) kN - 1160
Basic Static Load Rating (C0r) kN - 2320
Fatigue Limit Load (Cur) kN - 176
Limiting Speed (nG) rpm - 1600
