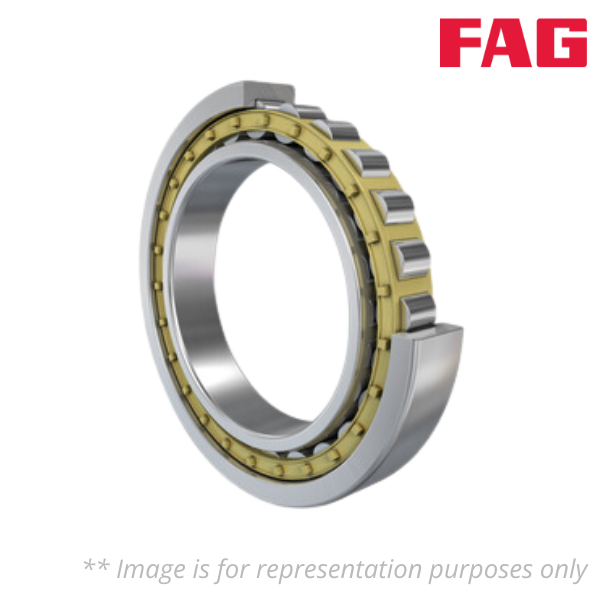

NU18/630-M1 FAG

Brand - FAG
Item Number - NU18/630-M1 FAG
Weight (kg) - 71.8

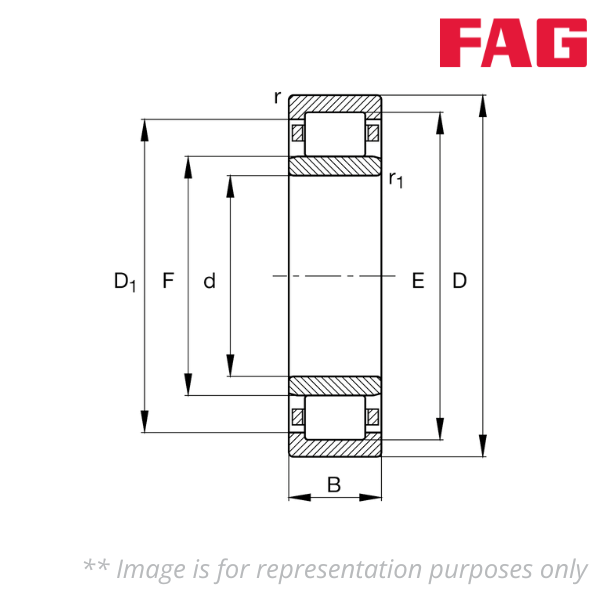

Inner Diameter (d) mm - 630
Outer Diameter (D) mm - 780
Inner Width (B) mm - 69
Minimum Chamfer Dimension (r) mm - 4
Minimum Chamfer Dimension (r1) mm - 4

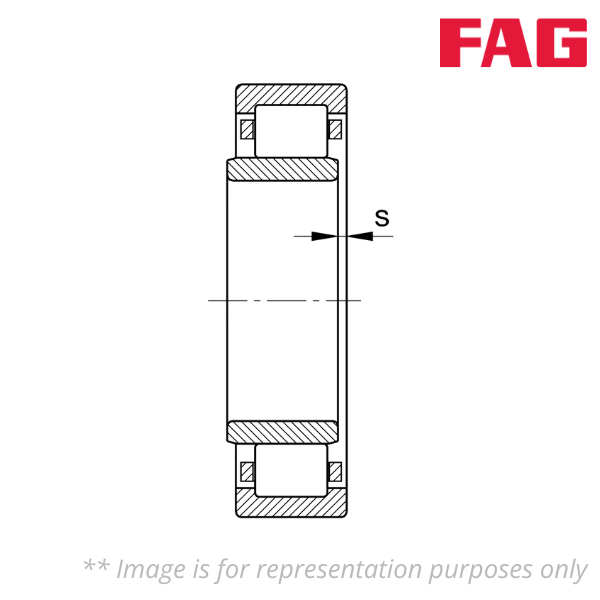

Axial Displacement (s) mm - 8.4
Raceway Diameter Outer Ring (E) mm - 744
Raceway Diameter Inner Ring (F) mm - 672
Shoulder Diameter Outer Ring (D1) mm - 732
Minimum Diameter of Shaft Shoulder (da) mm - 645
Maximum Diameter of Shaft Shoulder (da) mm - 667
Minimum Shaft Shoulder (db) mm - 677
Maximum Diameter of Housing Shoulder (Da) mm - 765
Maximum Fillet Radius of Shaft (ra) mm - 3
Maximum Fillet Radius of Housing (ra1) mm - 3
Basic Dynamic Load Rating (Cr) kN - 1140
Basic Static Load Rating (C0r) kN - 2600
Fatigue Limit Load (Cur) kN - 189
Limiting Speed (nG) rpm - 1400
