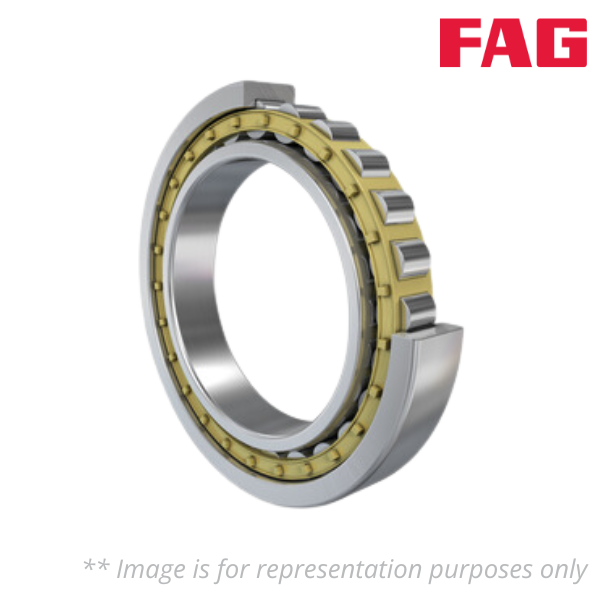

NU18/1320-M1 FAG

Brand - FAG
Item Number - NU18/1320-M1 FAG
Weight (kg) - 497

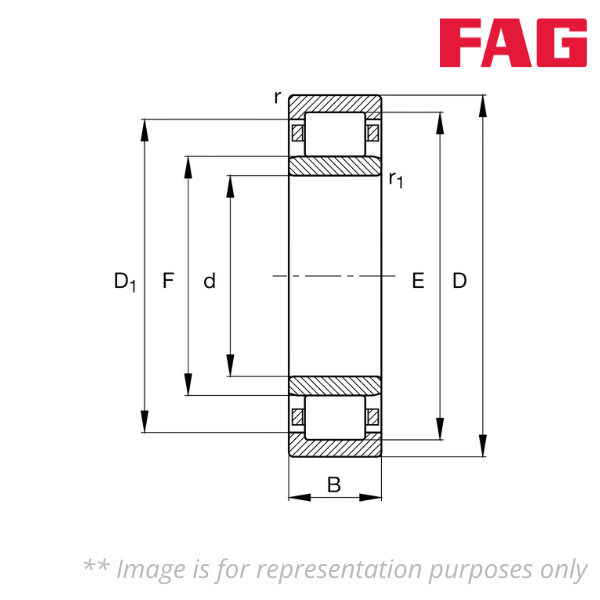

Inner Diameter (d) mm - 1320
Outer Diameter (D) mm - 1600
Inner Width (B) mm - 122
Minimum Chamfer Dimension (r) mm - 6
Minimum Chamfer Dimension (r1) mm - 6

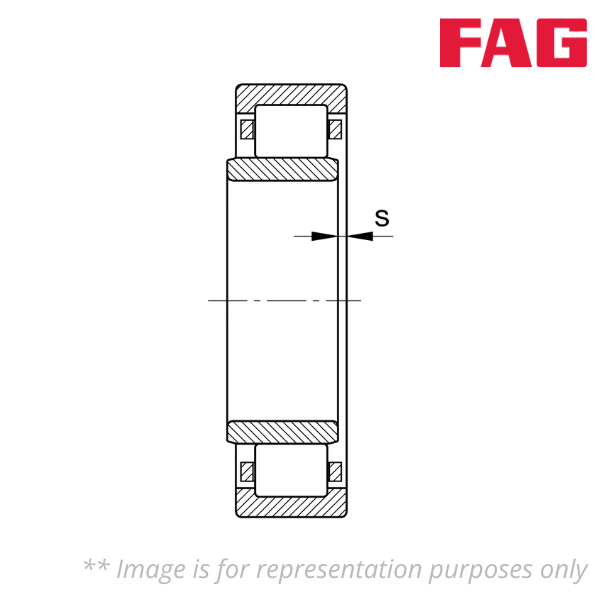

Axial Displacement (s) mm - 12.8
Raceway Diameter Outer Ring (E) mm - 1533
Raceway Diameter Inner Ring (F) mm - 1397
Shoulder Diameter Outer Ring (D1) mm - 1511
Minimum Diameter of Shaft Shoulder (da) mm - 1243
Maximum Diameter of Shaft Shoulder (da) mm - 1392
Minimum Shaft Shoulder (db) mm - 1402
Maximum Diameter of Housing Shoulder (Da) mm - 1577
Maximum Fillet Radius of Shaft (ra) mm - 5
Maximum Fillet Radius of Housing (ra1) mm - 5
Basic Dynamic Load Rating (Cr) kN - 3800
Basic Static Load Rating (C0r) kN - 10200
Fatigue Limit Load (Cur) kN - 600
Limiting Speed (nG) rpm - 630
