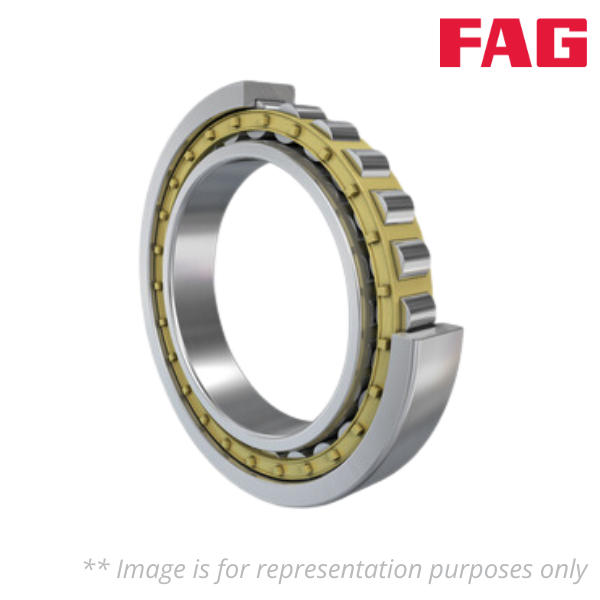

NU10/710-M1A FAG

Brand - FAG
Item Number - NU10/710-M1A FAG
Weight (kg) - 406

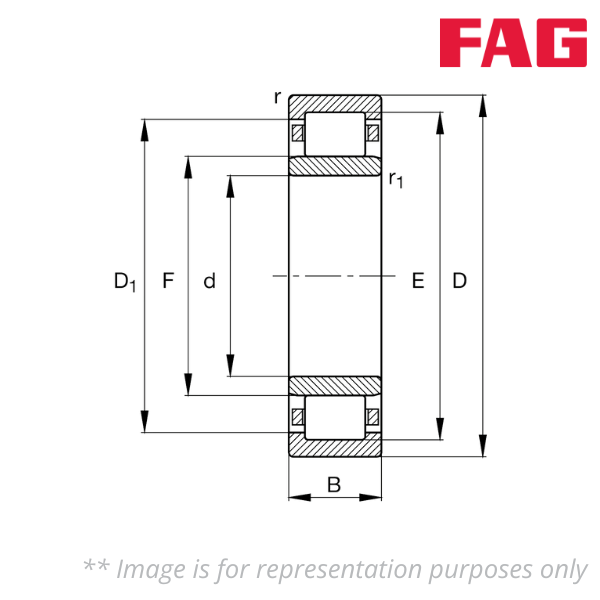

Inner Diameter (d) mm - 710
Outer Diameter (D) mm - 1030
Inner Width (B) mm - 140
Minimum Chamfer Dimension (r) mm - 7.5
Minimum Chamfer Dimension (r1) mm - 7.5

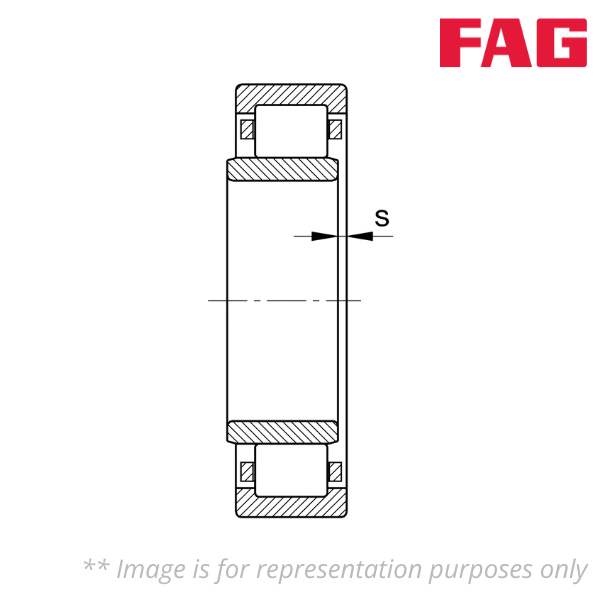

Axial Displacement (s) mm - 12.6
Raceway Diameter Outer Ring (E) mm - 950
Raceway Diameter Inner Ring (F) mm - 790
Shoulder Diameter Outer Ring (D1) mm - 924.5
Minimum Diameter of Shaft Shoulder (da) mm - 738
Maximum Diameter of Shaft Shoulder (da) mm - 784
Minimum Shaft Shoulder (db) mm - 796
Maximum Diameter of Housing Shoulder (Da) mm - 1002
Maximum Fillet Radius of Shaft (ra) mm - 6
Maximum Fillet Radius of Housing (ra1) mm - 6
Basic Dynamic Load Rating (Cr) kN - 4050
Basic Static Load Rating (C0r) kN - 8000
Fatigue Limit Load (Cur) kN - 510
Limiting Speed (nG) rpm - 950
Reference Speed (nB) rpm - 425
