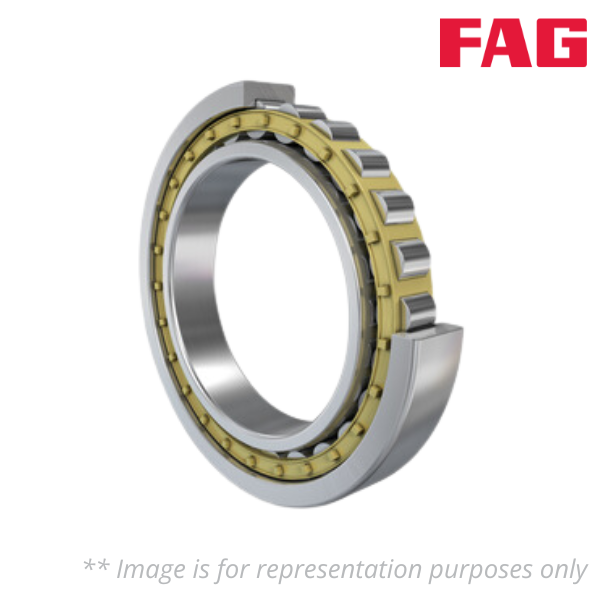

NU10/500-M1 FAG

Brand - FAG
Item Number - NU10/500-M1 FAG
Weight (kg) - 133

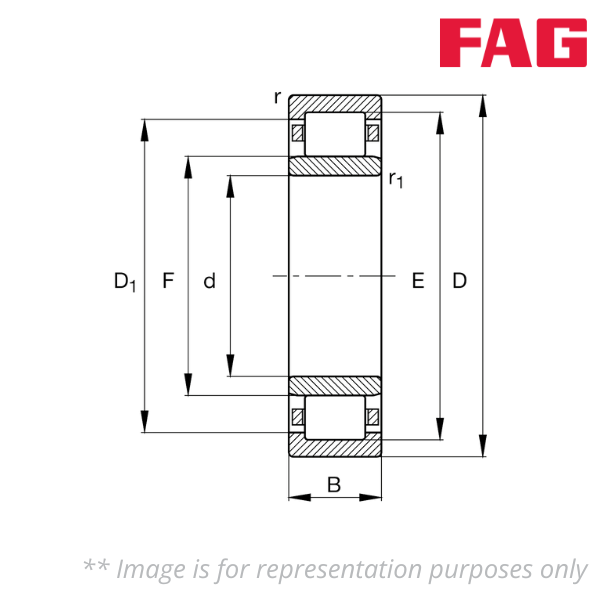

Inner Diameter (d) mm - 500
Outer Diameter (D) mm - 720
Inner Width (B) mm - 100
Minimum Chamfer Dimension (r) mm - 6
Minimum Chamfer Dimension (r1) mm - 6

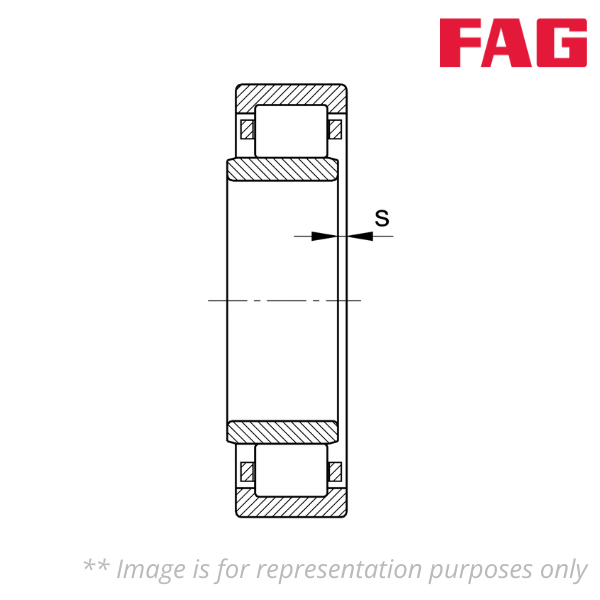

Axial Displacement (s) mm - 10.7
Raceway Diameter Outer Ring (E) mm - 664
Raceway Diameter Inner Ring (F) mm - 556
Shoulder Diameter Outer Ring (D1) mm - 643.9
Minimum Diameter of Shaft Shoulder (da) mm - 523
Maximum Diameter of Shaft Shoulder (da) mm - 550
Minimum Shaft Shoulder (db) mm - 562
Maximum Diameter of Housing Shoulder (Da) mm - 697
Maximum Fillet Radius of Shaft (ra) mm - 5
Maximum Fillet Radius of Housing (ra1) mm - 5
Basic Dynamic Load Rating (Cr) kN - 1760
Basic Static Load Rating (C0r) kN - 3200
Fatigue Limit Load (Cur) kN - 232
Limiting Speed (nG) rpm - 1500
Reference Speed (nB) rpm - 750
