Description
Brand - SKF
Item Number - NU 2226 ECML/C3 SKF
Category - Gearbox, Cylindrical roller bearings

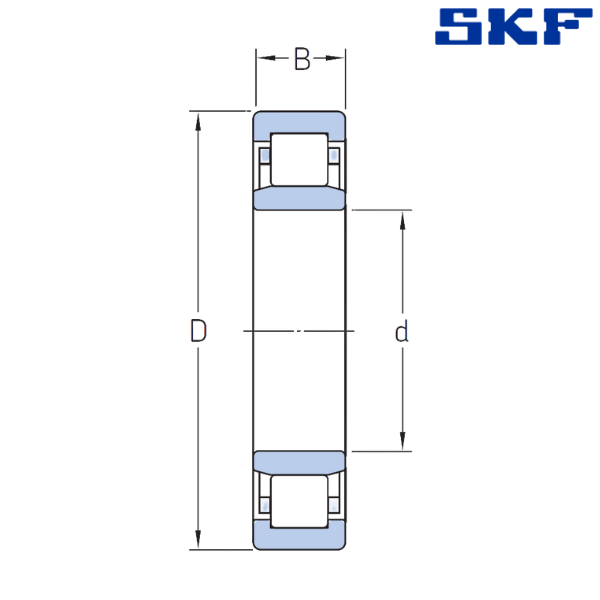

Bore Diameter (d) mm - 130
Outer Diameter (D) mm - 230
Width (B) mm - 64
Dynamic Load Rating (C) kN - 610
Static Load Rating (C0) kN - 735
Limiting Speed (r/min) - 5300
Weight (kg) - 11.3
Designation Prefixes and Suffixes:
N - Snap Ring Groove in the Outer Ring
EC - Optimized Internal Design Incorporating More and/or Larger Rollers and with Modified Roller End/Flange Contact
ML - Machined One-Piece Window-Type Brass Cage, Outer Ring Centred, used for Oil Lubrication
C3 - Bearing Internal Clearance Greater Than Normal (CN)

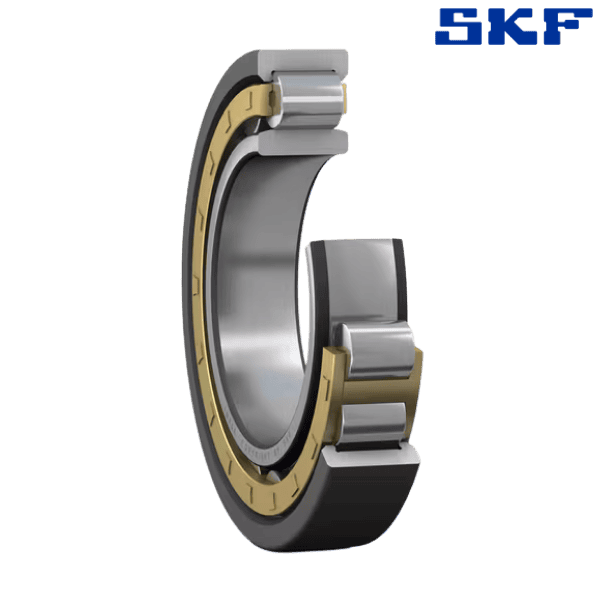

** Images are for representation purposes only
