Description
Brand - NADELLA
Item Number - NTVZ84-17H-290-D NADELLA
Category - Hardened Telescopic Rails Full Extension

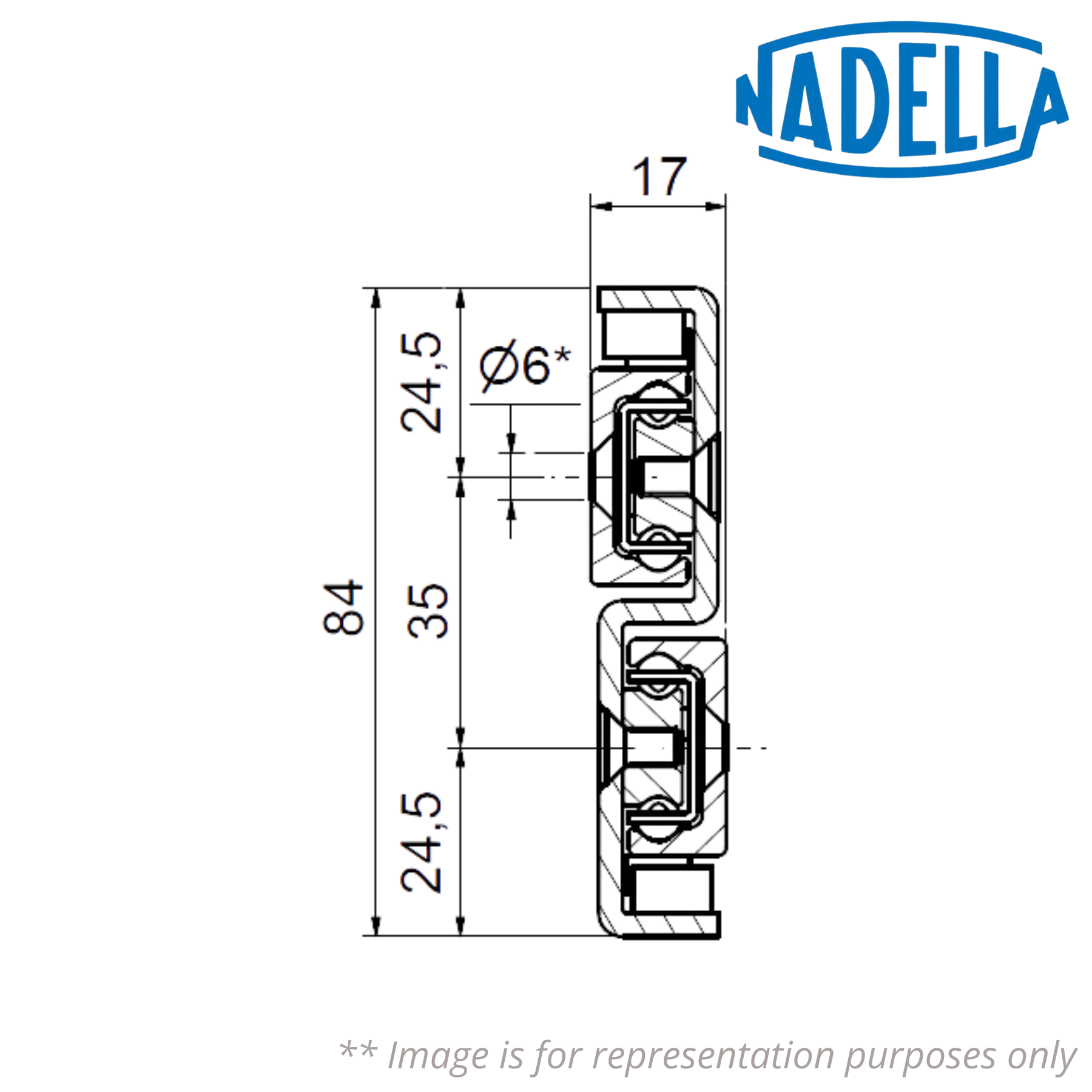

Principal Dimensions & Load Ratings (Metric):
Length (L) - 290 mm
Extension (E) - 240 mm
Load Capacity for Pair of Rails (Cy) - 1968 N
Dynamic Load for Lifetime calculation (Cdyn) - 1967 N
Weight - 2.01 kg
Description of Suffixes and Prefixes:
NTVZ - Full extension telescopic rails
D - Allows Stroke in Double Direction
♦♦ Images are for representation purposes only
