Description
Brand - NADELLA
Item Number - NTVZ84-17H-1410-D NADELLA
Category - Hardened Telescopic Rails Full Extension
Principal Dimensions & Load Ratings (Metric):
Length (L) - 1410 mm
Extension (E) - 1360 mm
Load Capacity for Pair of Rails (Cy) - 2879 N
Dynamic Load for Lifetime calculation (Cdyn) - 3285 N
Weight - 9.77 kg
Description of Suffixes and Prefixes:
NTVZ - Full extension telescopic rails
D - Allows Stroke in Double Direction

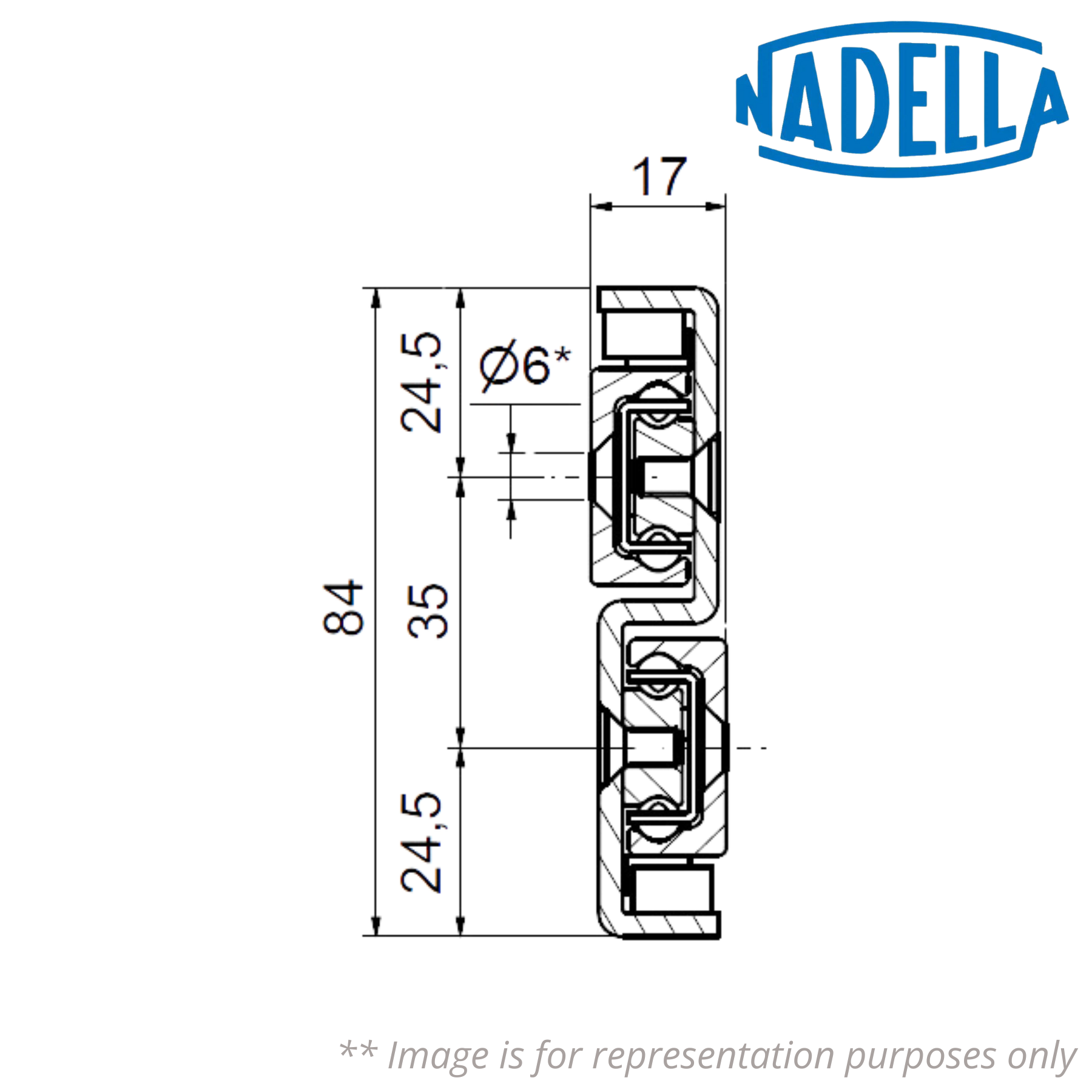

♦♦ Images are for representation purposes only
