Description
Brand - NADELLA
Item Number - NTVZ208-40H-930-D NADELLA
Category - Hardened Telescopic Rails Full Extension

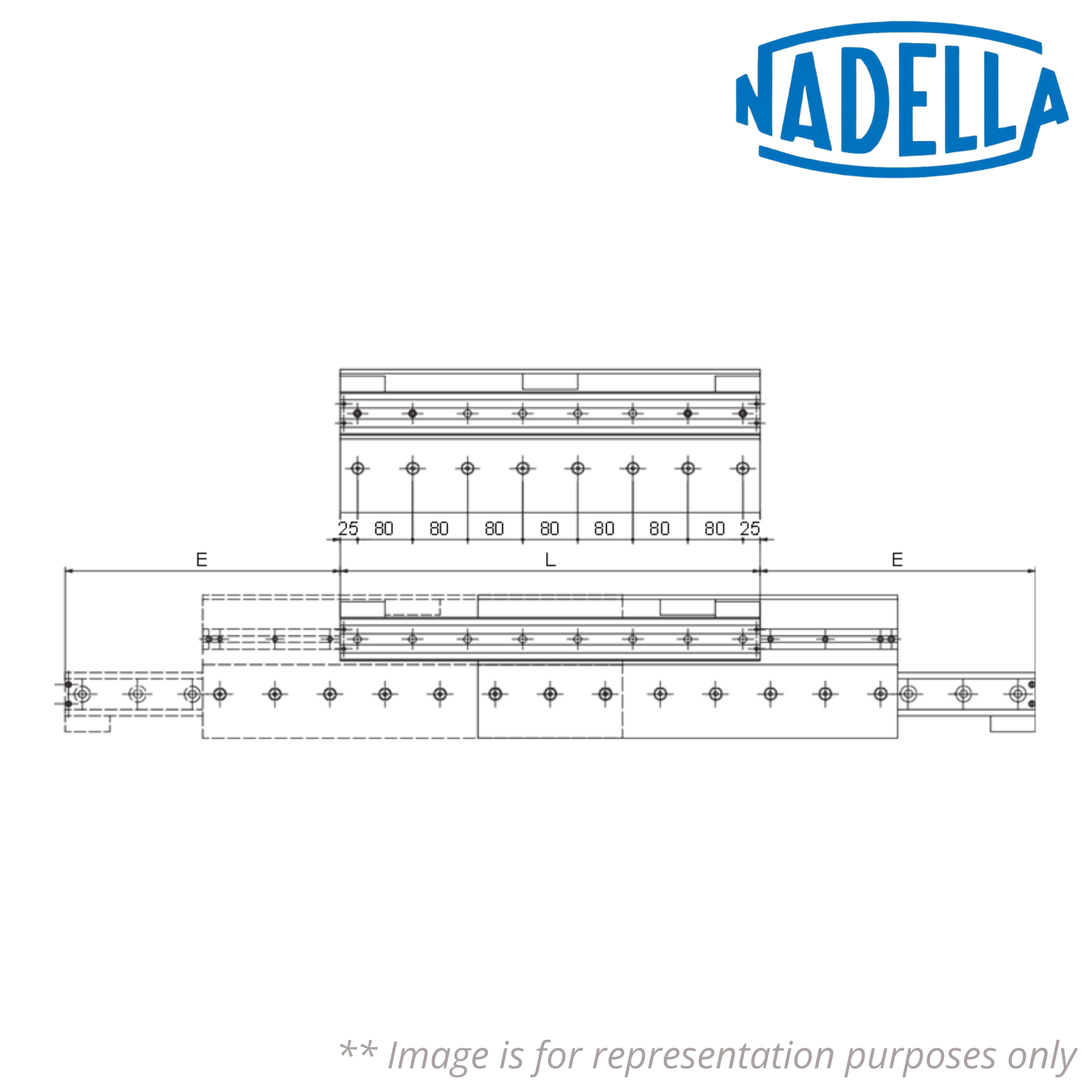

Principal Dimensions & Load Ratings (Metric):
Length (L) - 930 mm
Extension (E) - 720 mm
Load Capacity for Pair of Rails (Cy) - 27851 N
Dynamic Load for Lifetime calculation (Cdyn) - 17088 N
Weight - 33.39 kg
Description of Suffixes and Prefixes:
NTVZ - Full extension telescopic rails
D - Allows Stroke in Double Direction
♦♦ Images are for representation purposes only
