Description
Brand - NADELLA
Item Number - NTVZ208-40H-850-D NADELLA
Category - Hardened Telescopic Rails Full Extension

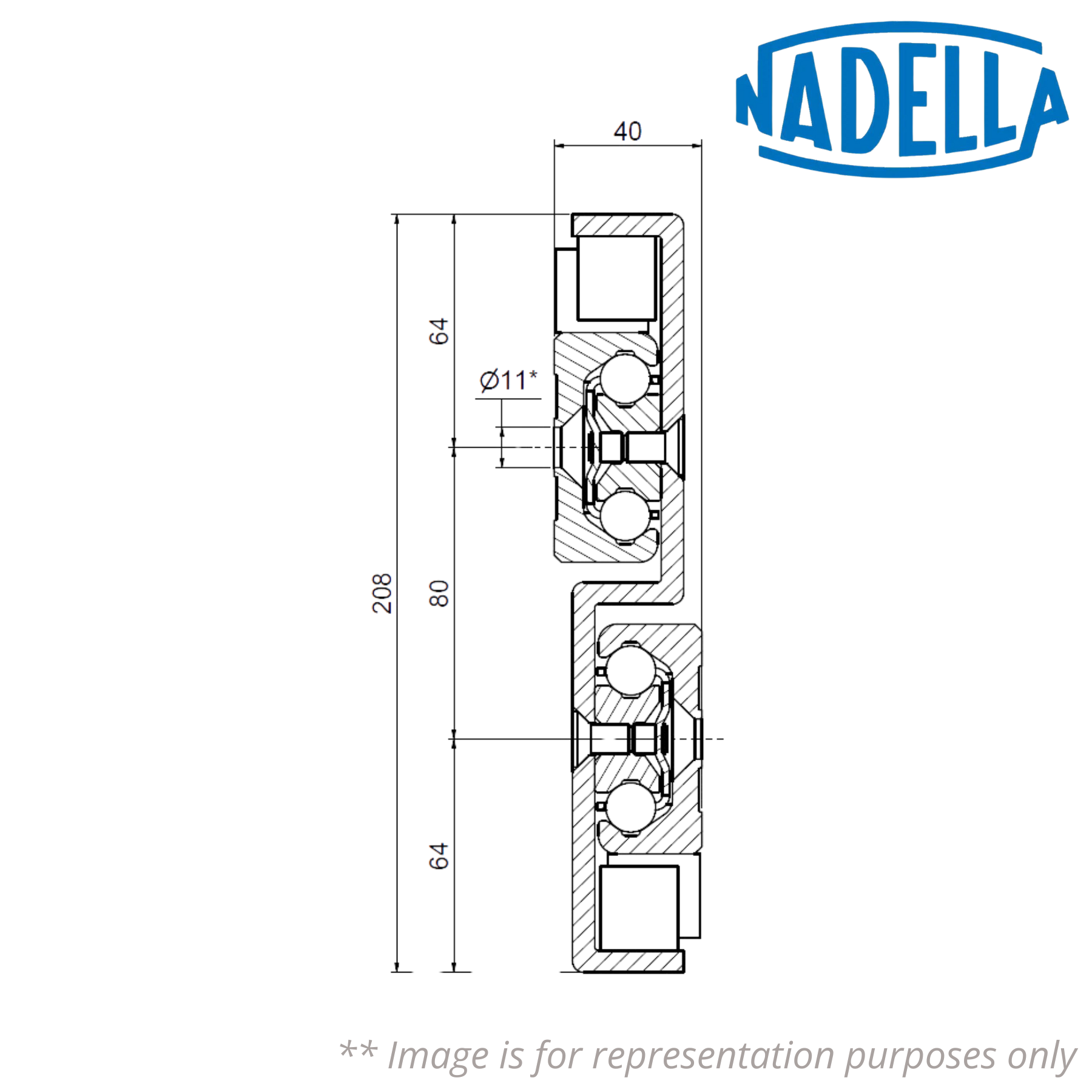

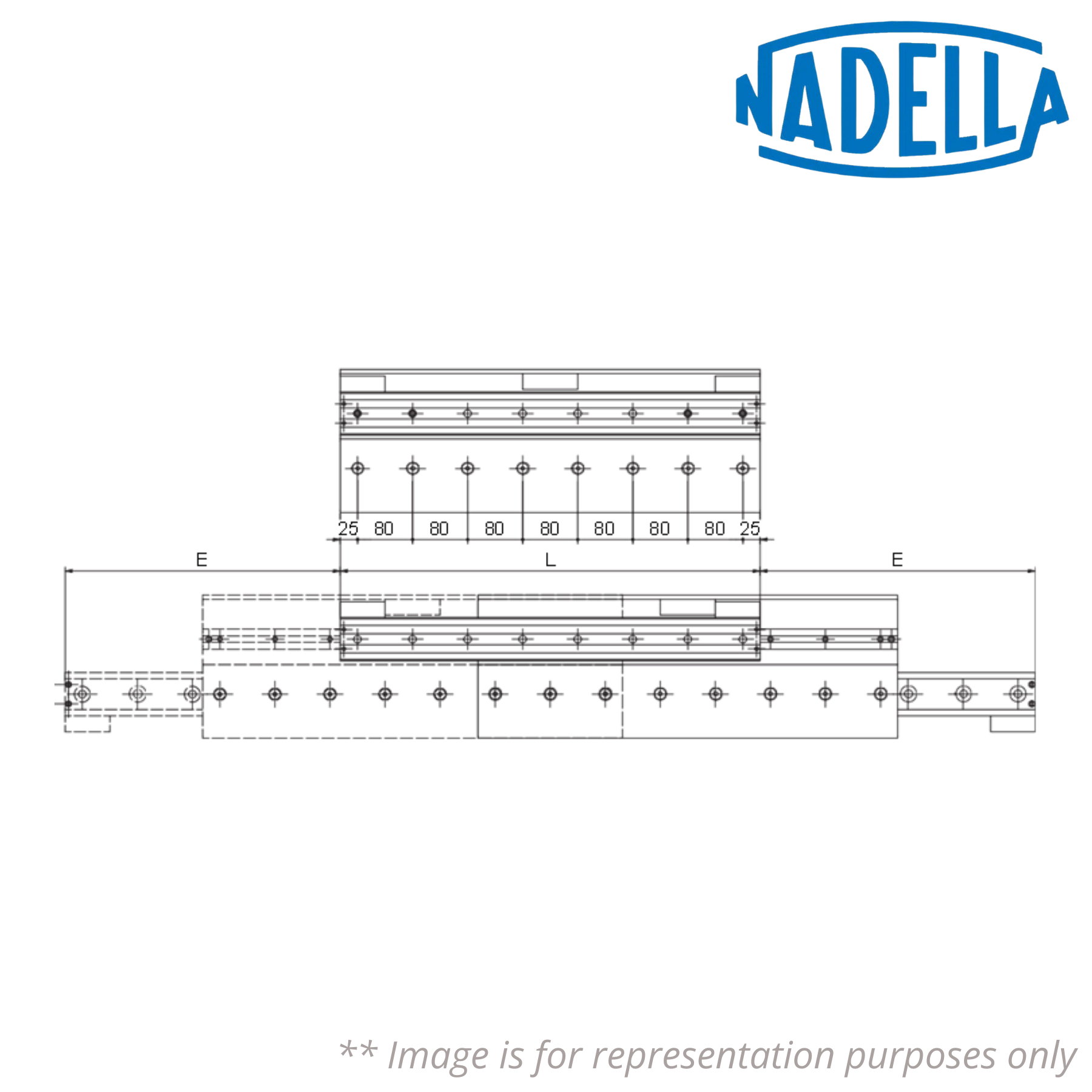

Principal Dimensions & Load Ratings (Metric):
Length (L) - 850 mm
Extension (E) - 640 mm
Load Capacity for Pair of Rails (Cy) - 26441 N
Dynamic Load for Lifetime calculation (Cdyn) - 15162 N
Weight - 30.52 kg
Description of Suffixes and Prefixes:
NTVZ - Full extension telescopic rails
D - Allows Stroke in Double Direction
♦♦ Images are for representation purposes only
