Description
Brand - NADELLA
Item Number - NTVZ208-40H-770-S NADELLA
Category - Hardened Telescopic Rails Full Extension
Principal Dimensions & Load Ratings (Metric):
Length (L) - 770 mm
Extension (E) - 828 mm
Load Capacity for Pair of Rails (Cy) - 10125 N
Dynamic Load for Lifetime calculation (Cdyn) - 13701 N
Weight - 25.66 kg
Description of Suffixes and Prefixes:
NTVZ - Full extension telescopic rails
S - Allows Stroke in a Single Direction

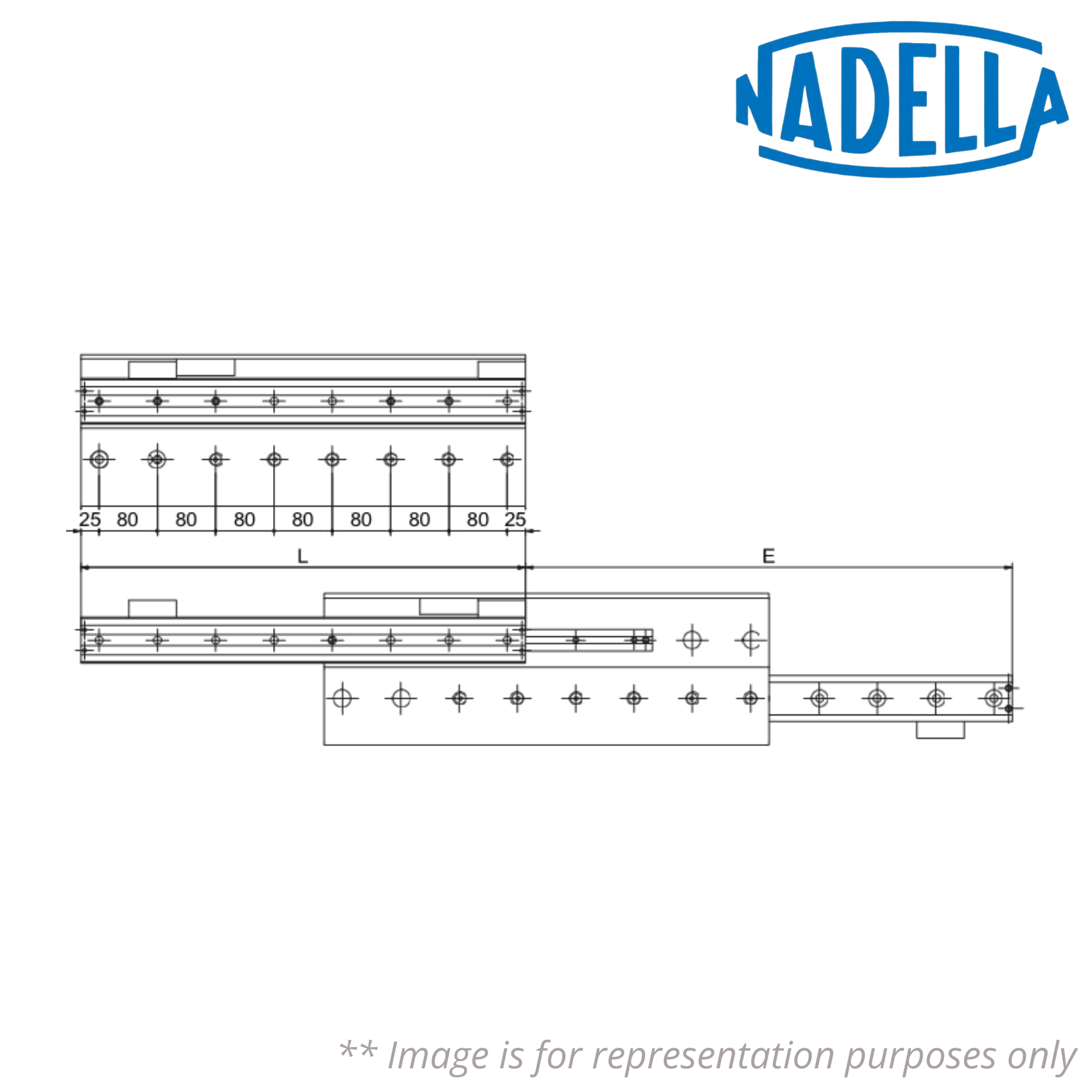

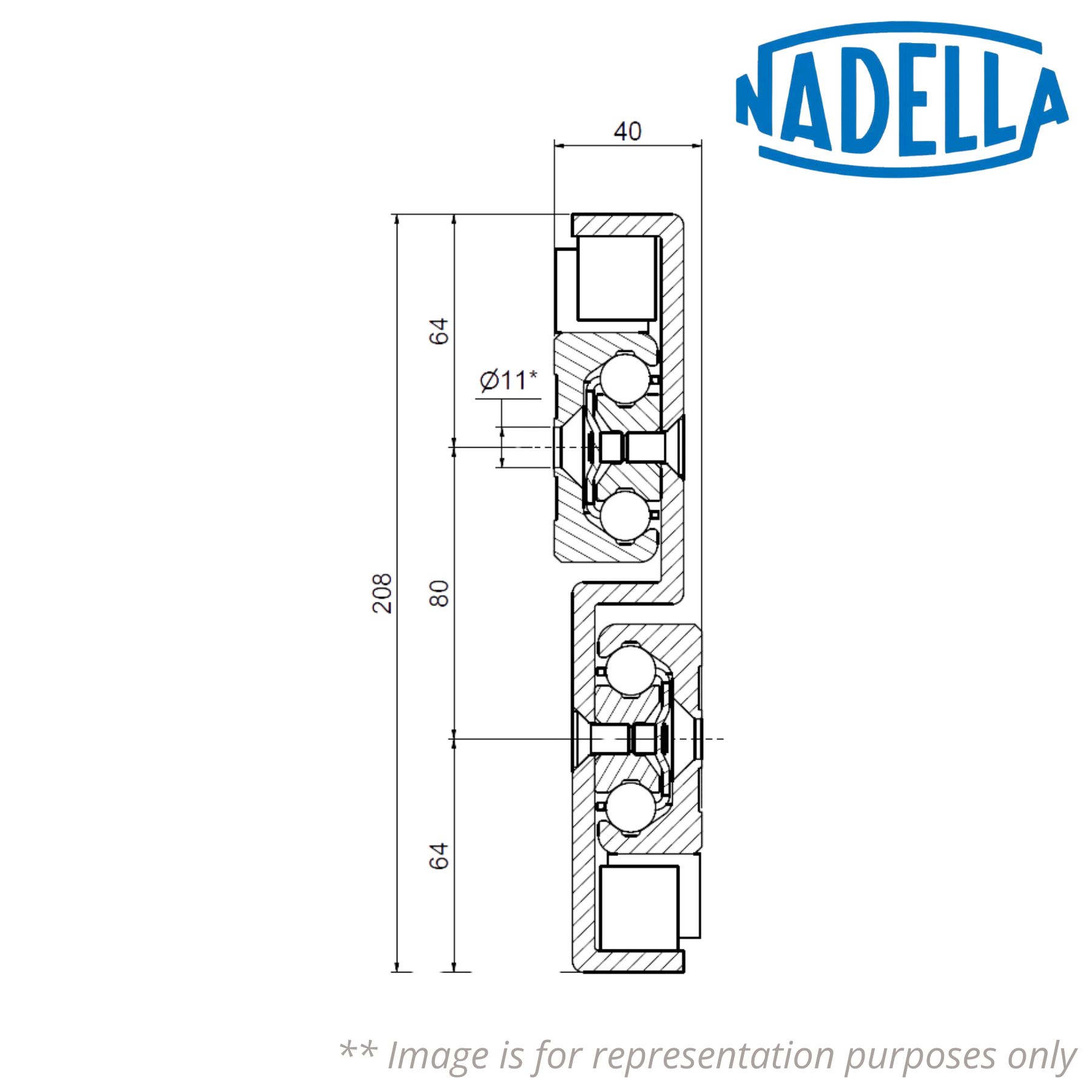

♦♦ Images are for representation purposes only
