Description
Brand - NADELLA
Item Number - NTVZ208-40H-690-S NADELLA
Category - Hardened Telescopic Rails Full Extension
Principal Dimensions & Load Ratings (Metric):

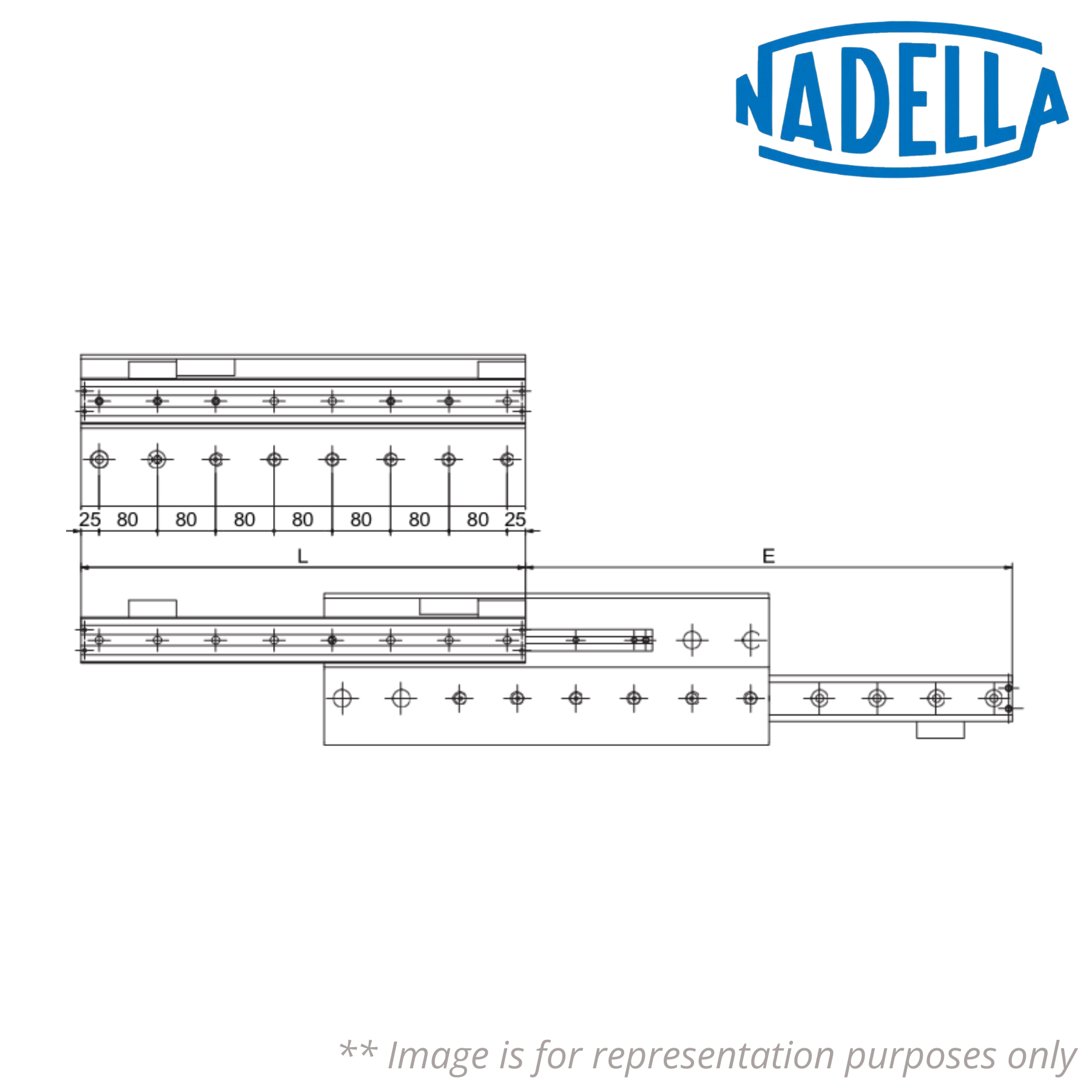

Length (L) - 690 mm
Extension (E) - 748 mm
Load Capacity for Pair of Rails (Cy) - 8214 N
Dynamic Load for Lifetime calculation (Cdyn) - 12576 N
Weight - 23 kg
Description of Suffixes and Prefixes:
NTVZ - Full extension telescopic rails
S - Allows Stroke in a Single Direction
♦♦ Images are for representation purposes only
