Description
Brand - NADELLA
Item Number - NTVZ208-40H-610-D NADELLA
Category - Hardened Telescopic Rails Full Extension

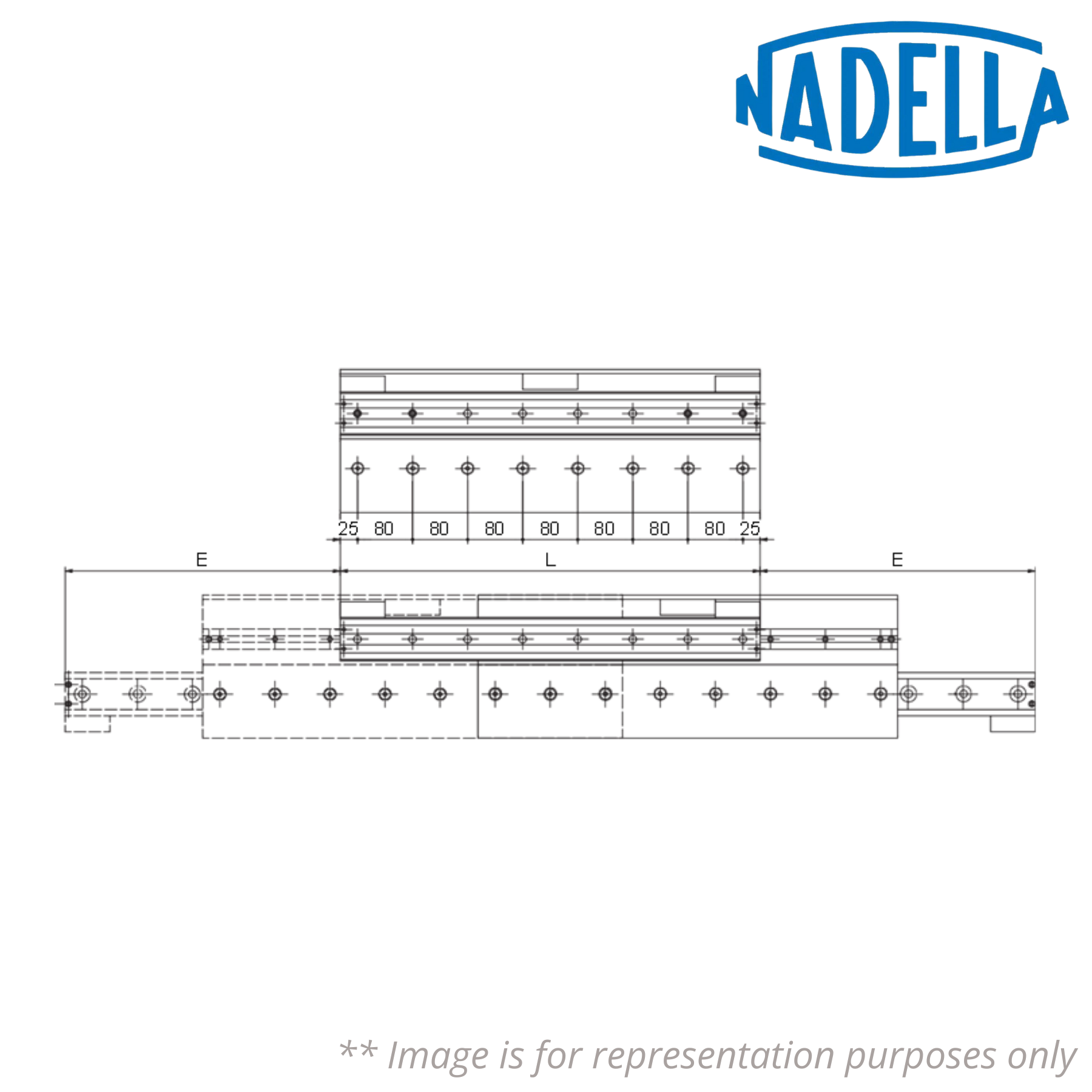

Principal Dimensions & Load Ratings (Metric):
Length (L) - 610 mm
Extension (E) - 400 mm
Load Capacity for Pair of Rails (Cy) - 23328 N
Dynamic Load for Lifetime calculation (Cdyn) - 10661 N
Weight - 21.9 kg
Description of Suffixes and Prefixes:
NTVZ - Full extension telescopic rails
D - Allows Stroke in Double Direction
♦♦ Images are for representation purposes only
