Description
Brand - NADELLA
Item Number - NTVZ208-40H-1730-D NADELLA
Category - Hardened Telescopic Rails Full Extension
Principal Dimensions & Load Ratings (Metric):
Length (L) - 1730 mm
Extension (E) - 1520 mm
Load Capacity for Pair of Rails (Cy) - 33017 N
Dynamic Load for Lifetime calculation (Cdyn) - 16308 N
Weight - 62.11 kg
Description of Suffixes and Prefixes:
NTVZ - Full extension telescopic rails
D - Allows Stroke in Double Direction

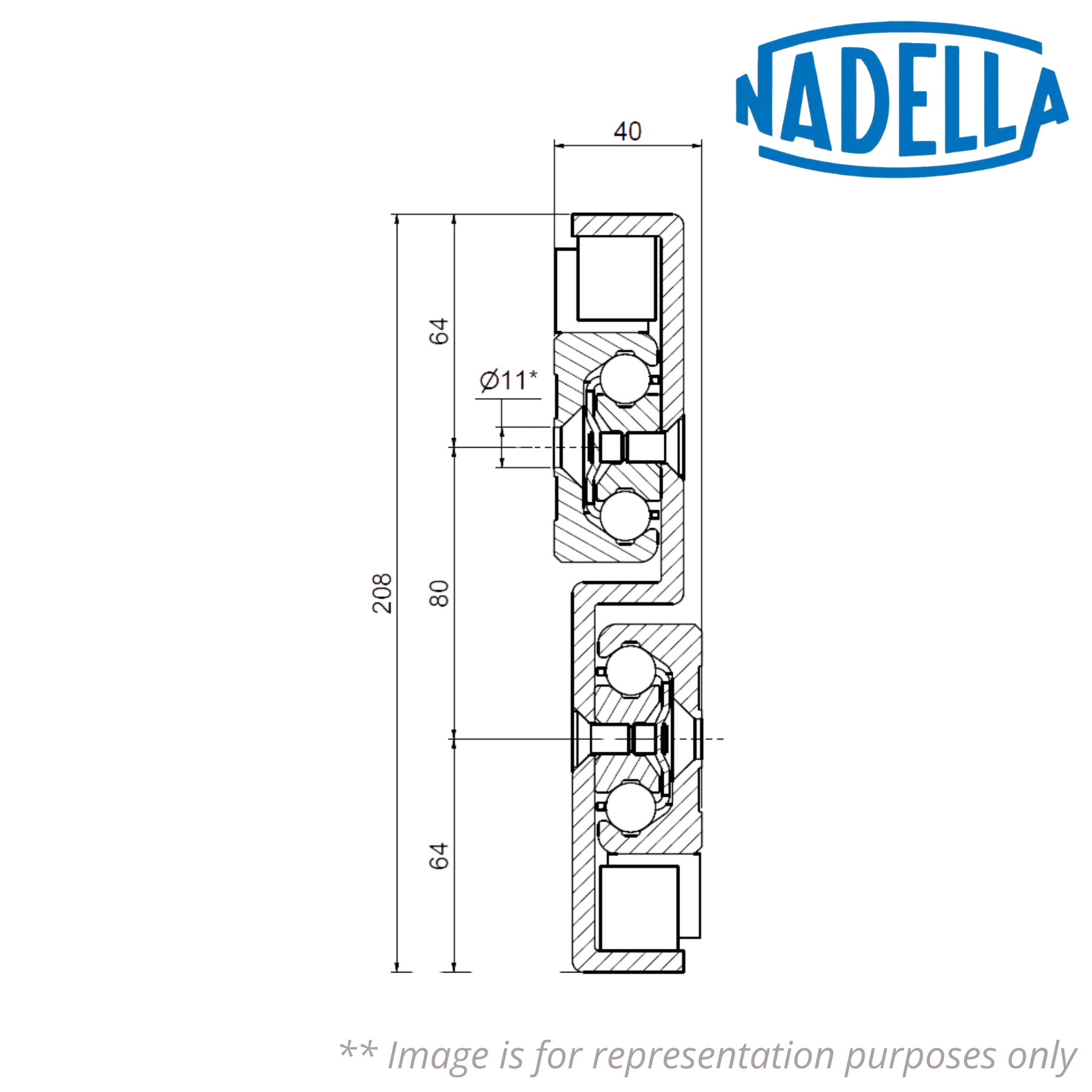

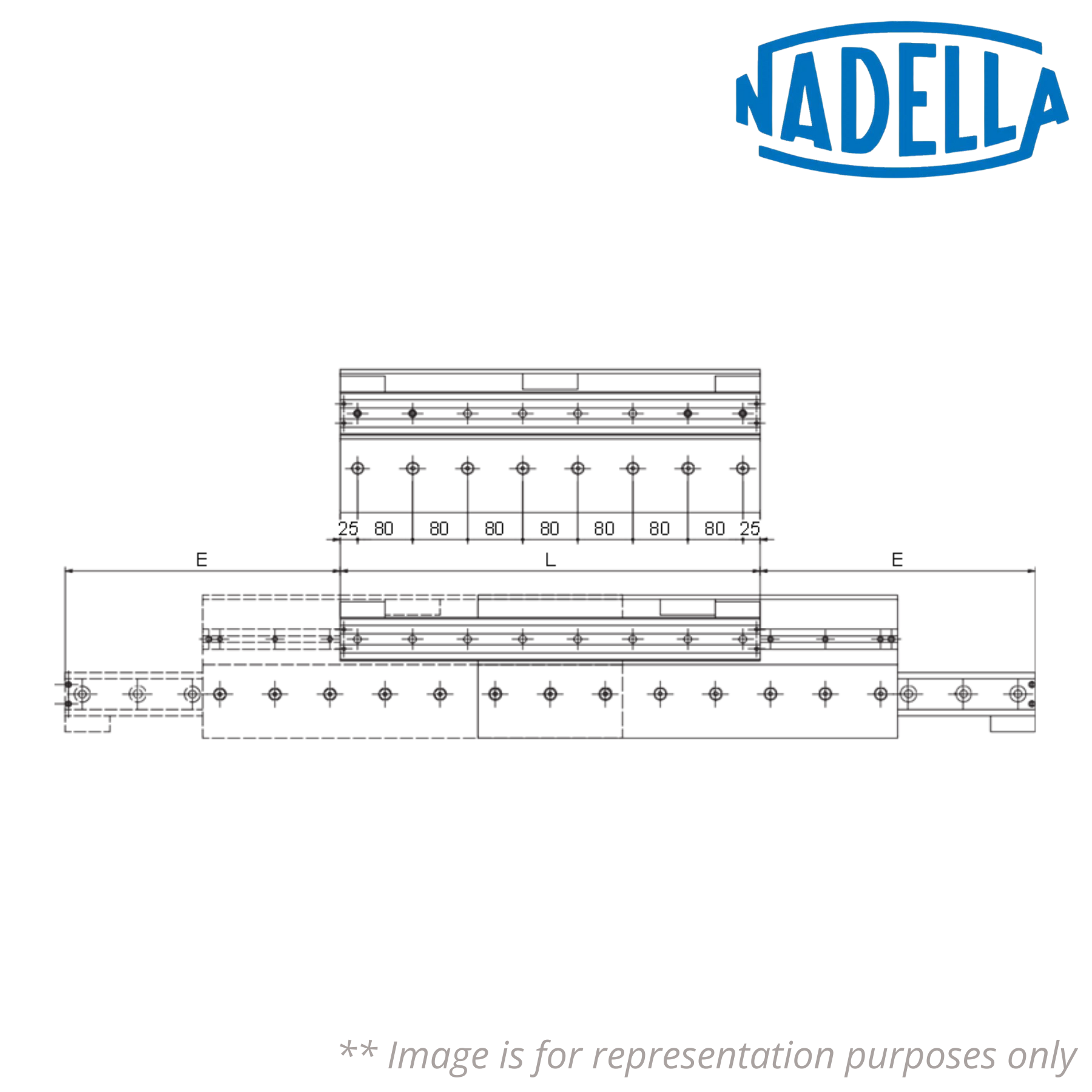

♦♦ Images are for representation purposes only
Item Number - NTVZ208-40H-1730-D NADELLA
Category - Hardened Telescopic Rails Full Extension
Principal Dimensions & Load Ratings (Metric):
Length (L) - 1730 mm
Extension (E) - 1520 mm
Load Capacity for Pair of Rails (Cy) - 33017 N
Dynamic Load for Lifetime calculation (Cdyn) - 16308 N
Weight - 62.11 kg
Description of Suffixes and Prefixes:
NTVZ - Full extension telescopic rails
D - Allows Stroke in Double Direction
♦♦ Images are for representation purposes only
