Description
Brand - NADELLA
Item Number - NTVZ208-40H-1570-S NADELLA
Category - Hardened Telescopic Rails Full Extension
Principal Dimensions & Load Ratings (Metric):
Length (L) - 1570 mm
Extension (E) - 1628 mm
Load Capacity for Pair of Rails (Cy) - 22537 N
Dynamic Load for Lifetime calculation (Cdyn) - 17178 N
Weight - 52.32 kg
Description of Suffixes and Prefixes:
NTVZ - Full extension telescopic rails
S - Allows Stroke in a Single Direction

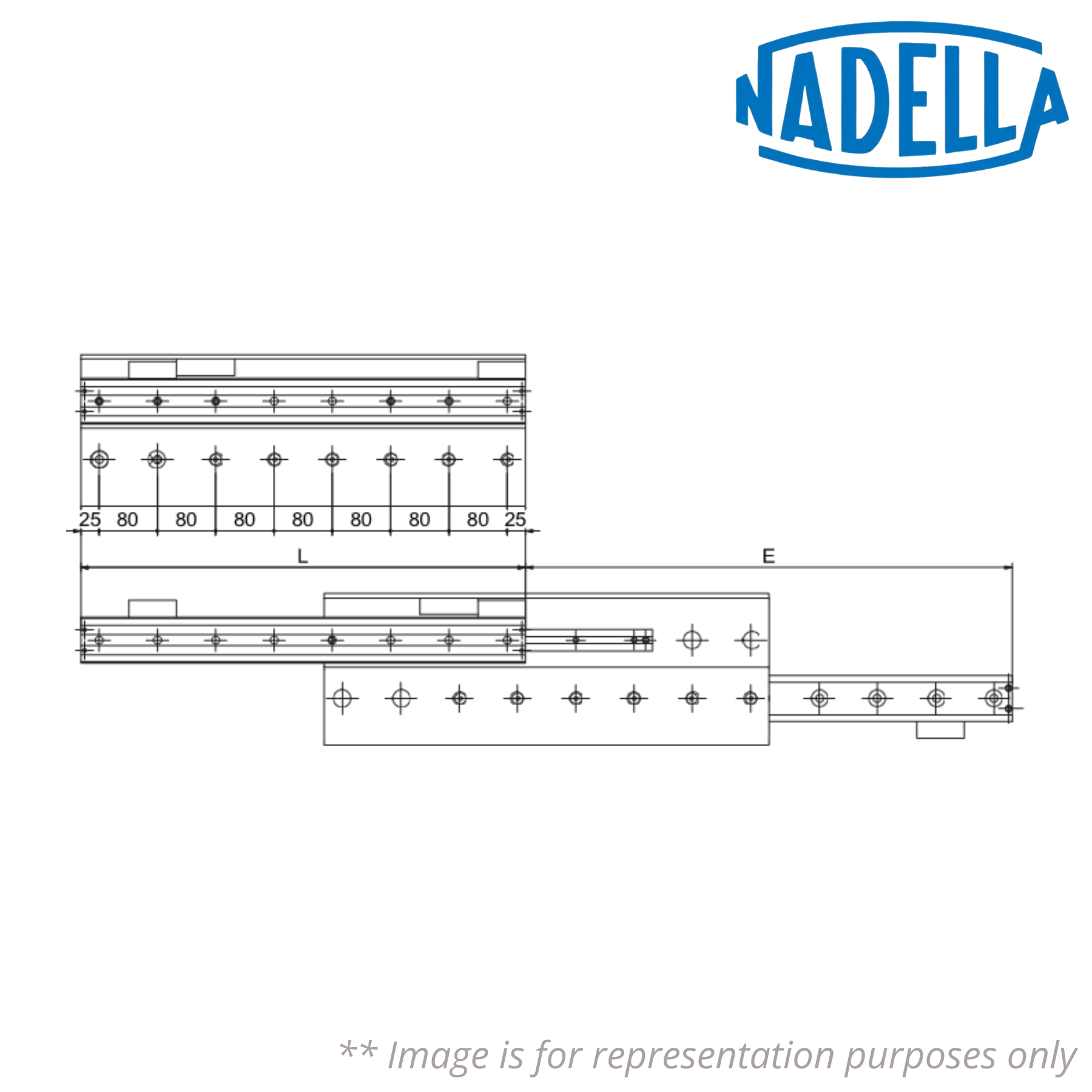

♦♦ Images are for representation purposes only
