Description
Brand - NADELLA
Item Number - NTVZ208-40H-1250-S NADELLA
Category - Hardened Telescopic Rails Full Extension
Principal Dimensions & Load Ratings (Metric):
Length (L) - 1250 mm
Extension (E) - 1308 mm
Load Capacity for Pair of Rails (Cy) - 19908 N
Dynamic Load for Lifetime calculation (Cdyn) - 21011 N
Weight - 41.66 kg
Description of Suffixes and Prefixes:
NTVZ - Full extension telescopic rails
S - Allows Stroke in a Single Direction

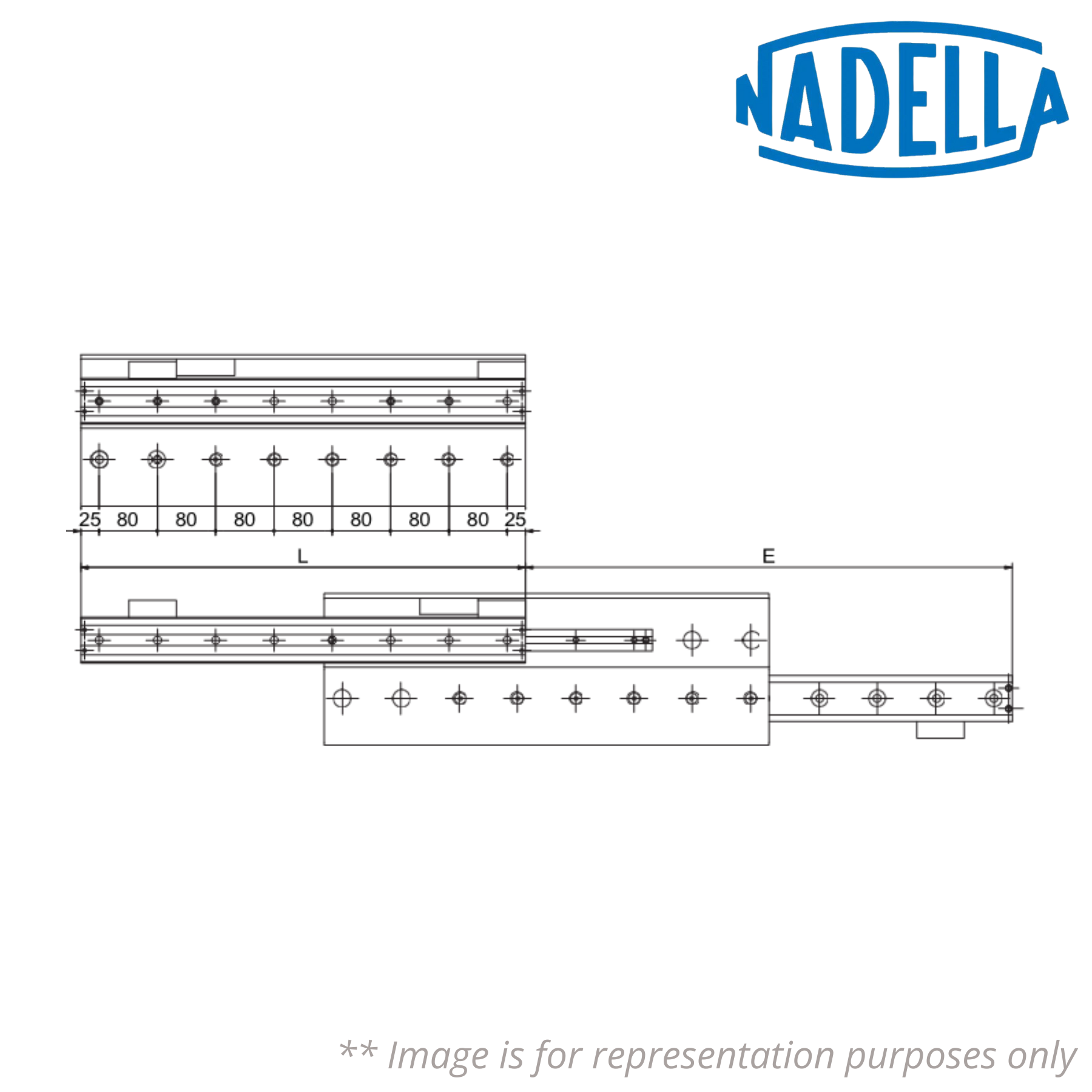

♦♦ Images are for representation purposes only
Item Number - NTVZ208-40H-1250-S NADELLA
Category - Hardened Telescopic Rails Full Extension
Principal Dimensions & Load Ratings (Metric):
Length (L) - 1250 mm
Extension (E) - 1308 mm
Load Capacity for Pair of Rails (Cy) - 19908 N
Dynamic Load for Lifetime calculation (Cdyn) - 21011 N
Weight - 41.66 kg
Description of Suffixes and Prefixes:
NTVZ - Full extension telescopic rails
S - Allows Stroke in a Single Direction
♦♦ Images are for representation purposes only
