Description
Brand - NADELLA
Item Number - NTV72-43DC-800 NADELLA
Category - Telescopic Rails Full Extension
Principal Dimensions & Load Ratings (Metric):
Hole Separation (C) - 275 mm
Length (L) - 800 mm
Extension (E) - 800 mm
Load Capacity for Pair of Rails (Cy) - 3500 N
Load Capacity for Pair of Rails (Cz) - 1750 N
Net Weight - 14.8 kg
Material - Zinc-Plated Steel
Description of Suffixes and Prefixes:
NTV - Telescopic rails full extension
DC - Back-to-Back Assembly

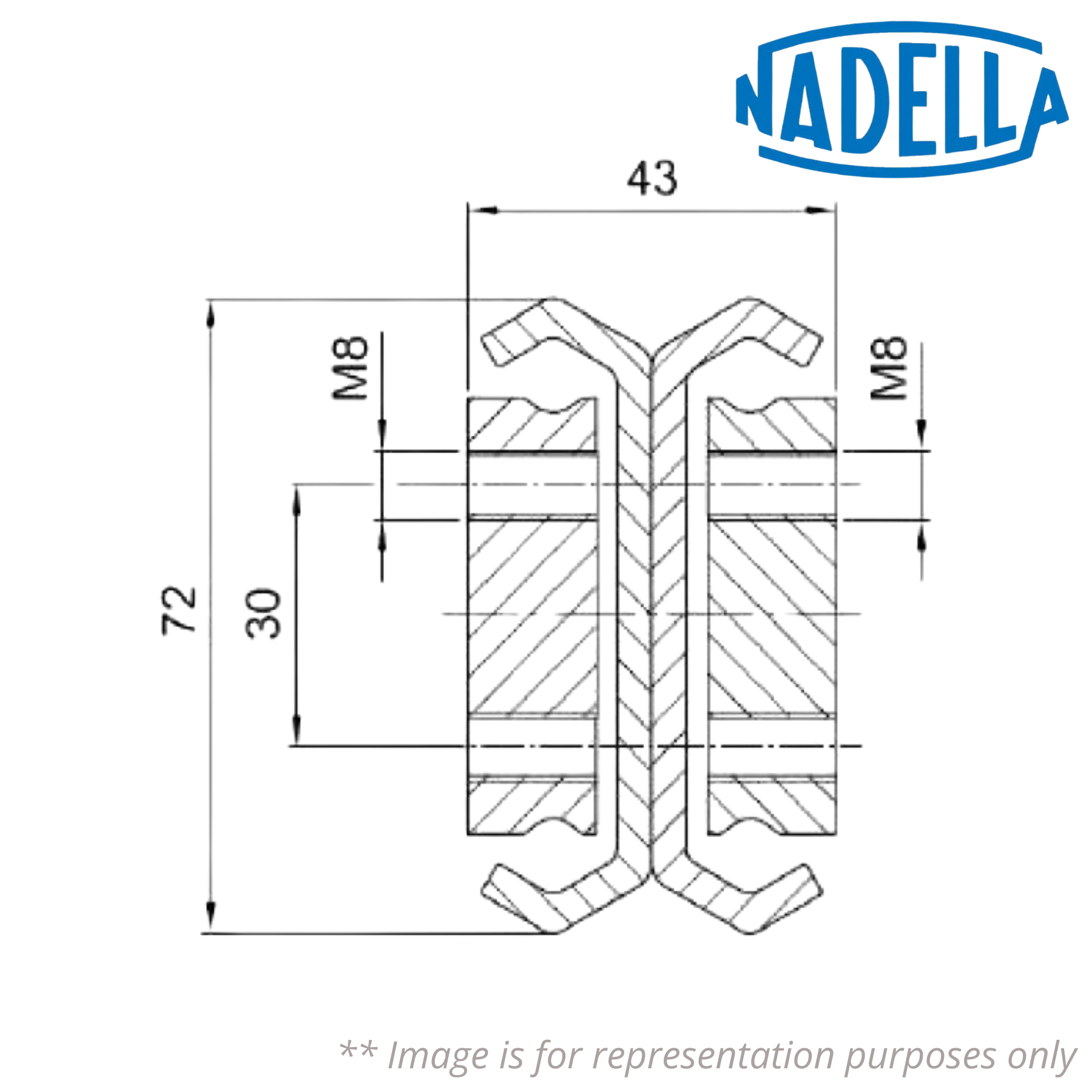

♦♦ Images are for representation purposes only
Item Number - NTV72-43DC-800 NADELLA
Category - Telescopic Rails Full Extension
Principal Dimensions & Load Ratings (Metric):
Hole Separation (C) - 275 mm
Length (L) - 800 mm
Extension (E) - 800 mm
Load Capacity for Pair of Rails (Cy) - 3500 N
Load Capacity for Pair of Rails (Cz) - 1750 N
Net Weight - 14.8 kg
Material - Zinc-Plated Steel
Description of Suffixes and Prefixes:
NTV - Telescopic rails full extension
DC - Back-to-Back Assembly
♦♦ Images are for representation purposes only
