Description
Brand - NADELLA

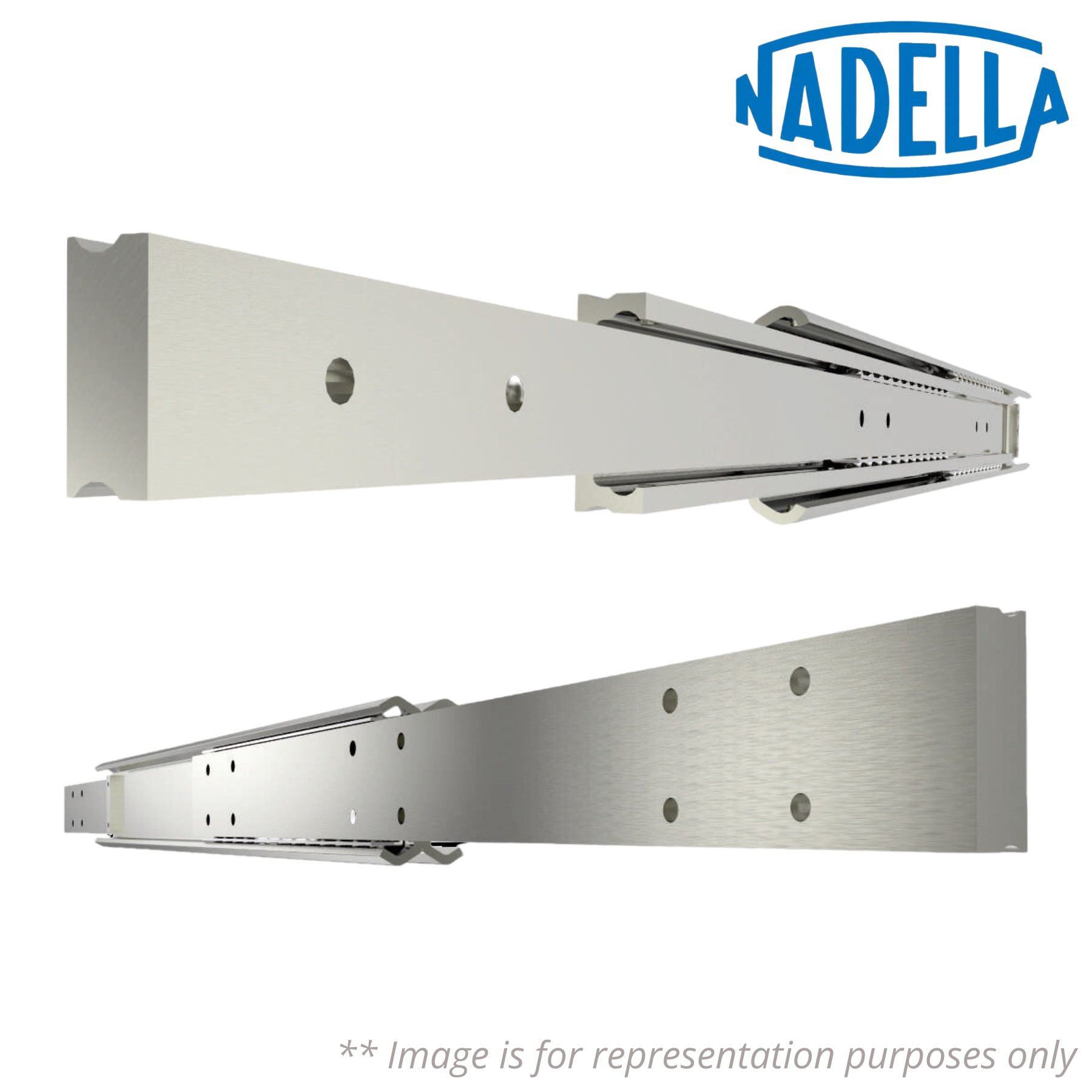

Item Number - NTV72-26T-350 NADELLA
Category - Telescopic Rails Full Extension

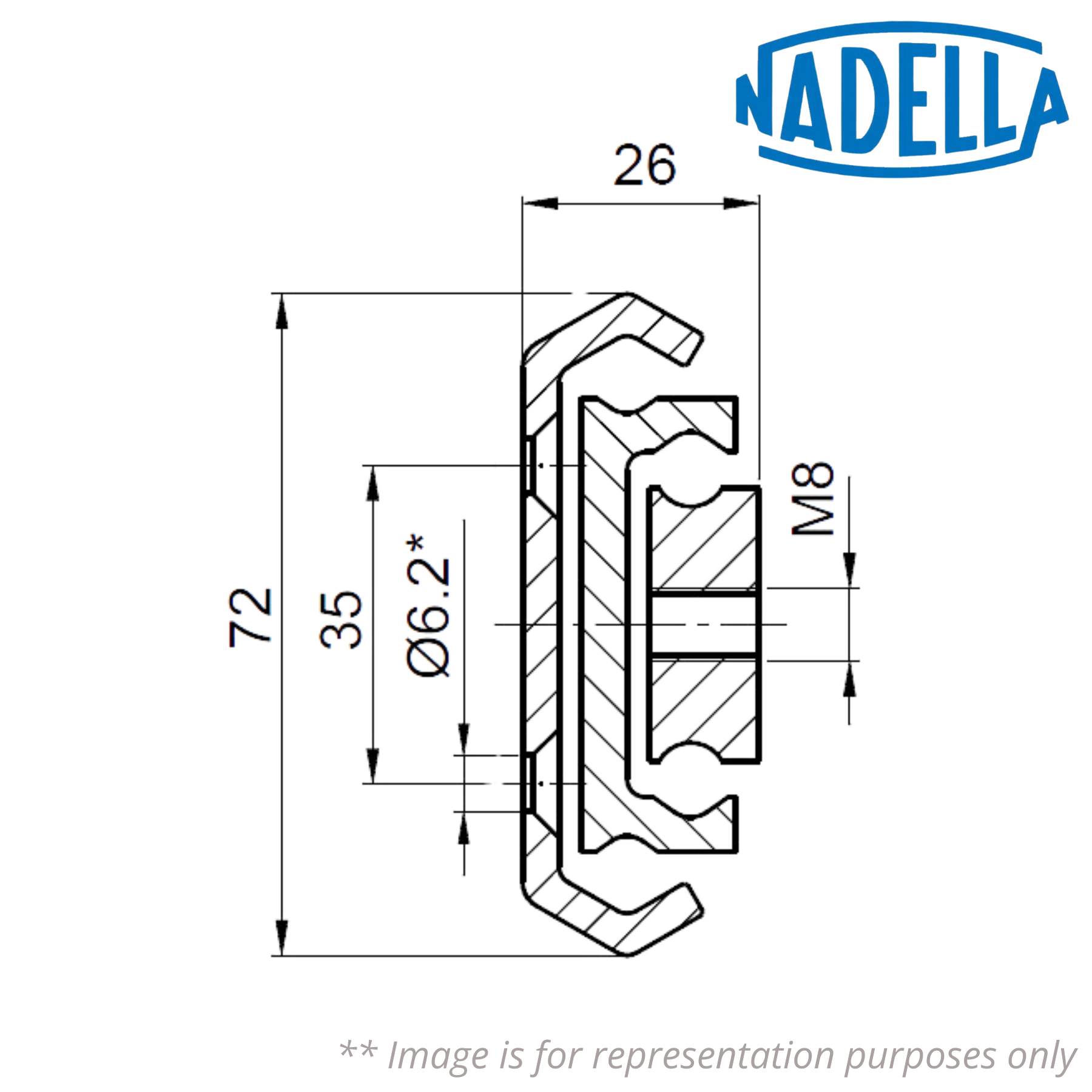

Principal Dimensions & Load Ratings (Metric):
Hole Separation (B) - 150 mm
Length (L) - 350 mm
Extension (E) - 350 mm
Load Capacity for Pair of Rails (Cy) - 3350 N
Load Capacity for Pair of Rails (Cz) - 1675 N
Net Weight - 3 kg
Material - Zinc-plated Steel
Description of Suffixes and Prefixes:
NTV - Telescopic rails full extension
T - Sheetrail
♦♦ Images are for representation purposes only
Item Number - NTV72-26T-350 NADELLA
Category - Telescopic Rails Full Extension
Principal Dimensions & Load Ratings (Metric):
Hole Separation (B) - 150 mm
Length (L) - 350 mm
Extension (E) - 350 mm
Load Capacity for Pair of Rails (Cy) - 3350 N
Load Capacity for Pair of Rails (Cz) - 1675 N
Net Weight - 3 kg
Material - Zinc-plated Steel
Description of Suffixes and Prefixes:
NTV - Telescopic rails full extension
T - Sheetrail
♦♦ Images are for representation purposes only
