Description
Brand - NADELLA
Item Number - NTV48-20T-400 NADELLA
Category - Telescopic Rails Full Extension
Principal Dimensions & Load Ratings (Metric):
Hole Separation (B) - 200 mm
Length (L) - 400 mm
Extension (E) - 400 mm
Load Capacity for Pair of Rails (Cy) - 1300 N
Load Capacity for Pair of Rails (Cz) - 650 N
Net Weight - 1.7 kg
Material - Zinc-plated Steel
Description of Suffixes and Prefixes:
NTV - Telescopic rails full extension
T - Sheetrail

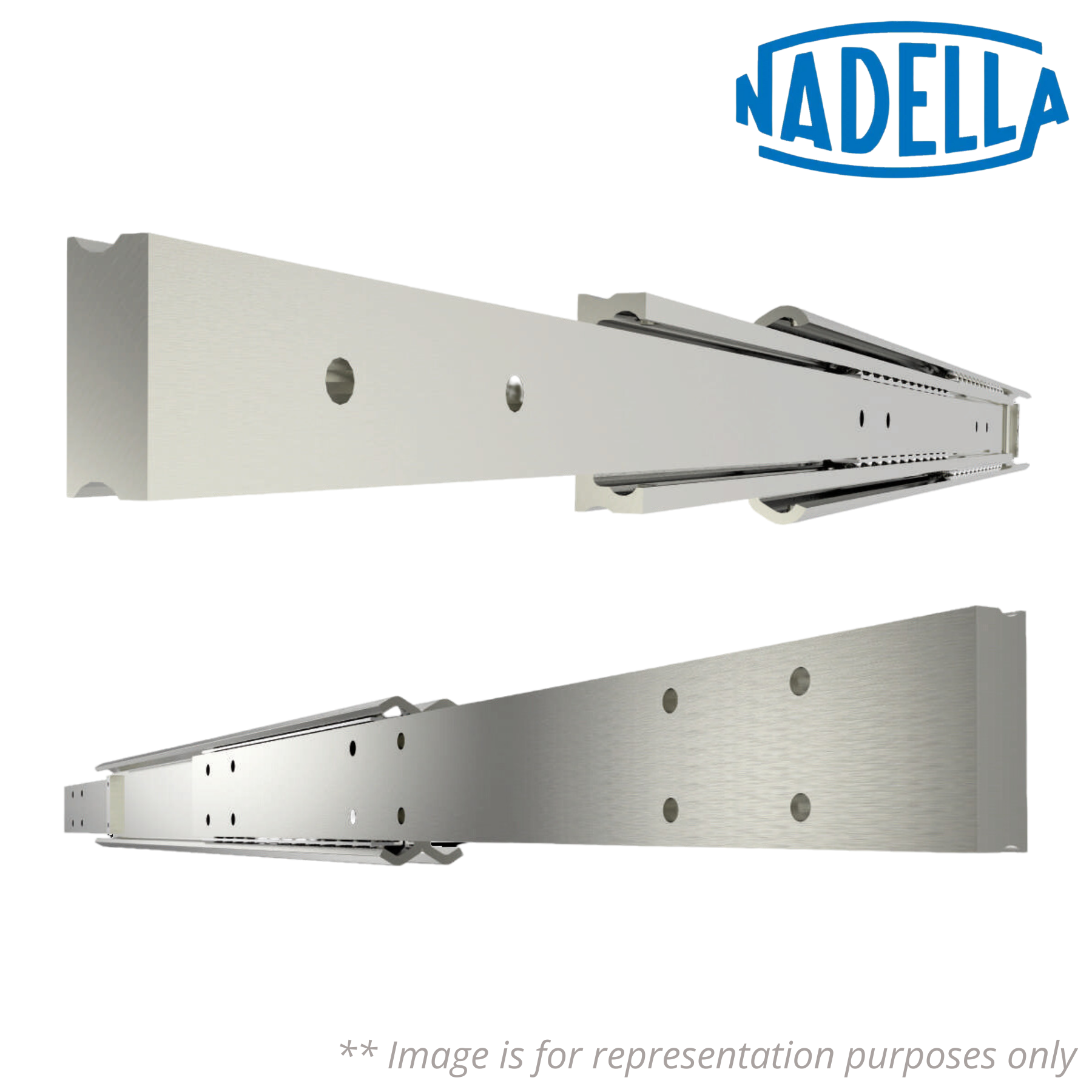

♦♦ Images are for representation purposes only
Item Number - NTV48-20T-400 NADELLA
Category - Telescopic Rails Full Extension
Principal Dimensions & Load Ratings (Metric):
Hole Separation (B) - 200 mm
Length (L) - 400 mm
Extension (E) - 400 mm
Load Capacity for Pair of Rails (Cy) - 1300 N
Load Capacity for Pair of Rails (Cz) - 650 N
Net Weight - 1.7 kg
Material - Zinc-plated Steel
Description of Suffixes and Prefixes:
NTV - Telescopic rails full extension
T - Sheetrail
♦♦ Images are for representation purposes only
